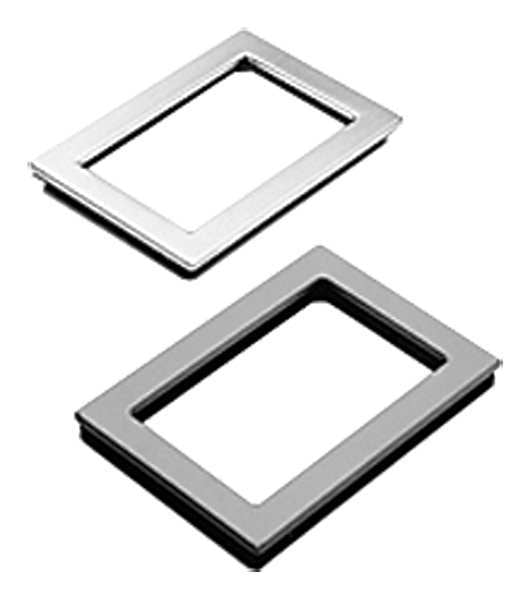

Enclosure Window Kit, 19.5in. Hx13.5in. W

SKU
Brand Nvent Hoffman
Categories
Description Enclosure Window Kit, Frame Height 19.5 in, Frame Width 13 1/2 in, Frame Depth 0.31 in, Cut Out Height 12.69 in, Cut Out Width 18.69 in, Cut Out Depth 0.76 in, Finish Polyster Powder Coated, For Use With NEMA 4, 12 Enclosure, Includes Mounting Hardware, Frame Material Heavy Steel, Color ANSI 61 Gray, Description/Special Features Heavy Gauge Steel with 0.25 in Acrylic Window
graingerSKU: 32FF96, mscSKU: , zoro_no: G8752877, mongo_id: 65bbe83b9a749db82277e391

Web Price

$667.49 / each

Product Details

Accessory Type Window Kits

Color ANSI 61 Gray

Color Code ANSI 61

Country of Origin (subject to change) United States

Cut Out Depth 0.76 in

Cut Out Height 12.69 in

Cut Out Width 18.69 in

Cutout Size 18.69 x 12.69 in / 475 x 322 mm

Cutout Size (G x H) (inch) 18.69 x 12.69

Cutout Size (G x H) (millimetre) 475 x 322

Description/Special Features Heavy Gauge Steel with 0.25 in Acrylic Window

Finish Polyster Powder Coated

For Use With NEMA 4, 12 Enclosure

Frame Depth 0.31 in

Frame Height 19.5 in

Frame Material Heavy Steel

Frame Width 13 1/2 in

Height 2.30 inch

Includes MOUNTING HARDWARE

IP Rating IP66

Length 22.30 inch

Material Mild Steel

Modification Services Yes

Package Quantity 1

Size 19.50x13.50x.31 in

Standards UL 508A Component Recognized; Type 4, 4X (stainless steel and; non-metallic versions only), 3R, 12; File No. E61997.; UL 746C Component Recognized (non-metallic version only).; CSA Type 4, 4X (stainless steel and non-metallic versions only), 3R, 12; File No. 42186; NEMA/EEMAC 4, 4X (stainless steel and non-metallic versions only), 3R, 12; IEC 60529, IP66

Thickness 14 ga / 1.9 mm

Thickness (T) (gauge) 14

Thickness (T) (millimetre) 1.9

Type Number Type 4

Width 16.80 inch

Window Size 432 x 279 mm / 17.00 x 11.00 in

Window Size (M x N) (inch) 17.00 x 11.00

Window Size (M x N) (millimetre) 432 x 279
