Home / Enclosed Power Relay, 6 Pin, 12VDC, DPST-NO, Body Width - Relay: 1.44 in

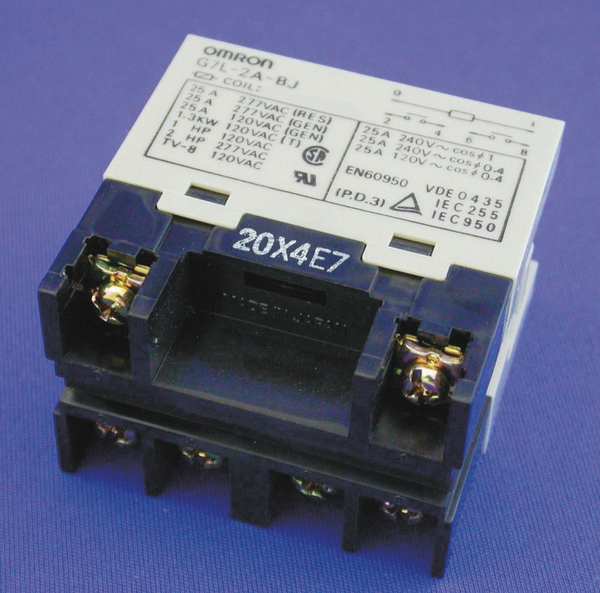

Enclosed Power Relay, 6 Pin, 12VDC, DPST-NO, Body Width - Relay: 1.44 in

Enclosed Power Relay, 6 Pin, 12VDC, DPST-NO, Body Width - Relay: 1.44 in

  • Omron
  • Enclosed Power Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPST-NO, Current Rating 30 A, Electrical Connection Screw Terminal, Flat Pin Width 0.25 in, Number of Pins 6, Sealing Semi-Sealed, Status Indicator No Indicator, Contact Rating (AC) 25 A @ 240V, Horsepower @ 120V AC 1 1/2 hp, Horsepower @ 240V AC 3 hp, Mounting Style E-Bracket, Push-To-Test Method Test Button, Body Depth 1.36 in, Body Height 2.07 in, Body Width 1.44 in, Coil Resistance 75 ohm
Web Price
$21.06 / each
Qty

Product Details

25A @ 240V
Square
Bracket Mount
1.36 in
1.36 in
2.07 in
2.07 in
1.44 in
1.44 in
2.5VA, 1.9W
75 ohm
12V DC
DC
12V DC
25A @ 220VAC
25A @ 277VAC
DPST-NO
DPST-NO
Silver Tin Indium
25 A @ 240V
Indonesia
30 A
2,000V AC between Contacts of Different Poles (DPST-NO Type), 2,000V AC between Contacts of Same Pole, 4,000V AC min./5,000V AC Typical between Coil and Contacts
2.07H, 1.44W, 1.36D
Screw Terminal
Screw
Screw
100,000
Enclosed
Flame-Resist, No Contact Chattering for Momentary Voltage Drops up to 50% of Rated Voltage
0.25 in
Air Conditioners, Copy Machines, Facsimile Machines, Food Processing Equipment, Heater Switching Controllers, Lighting Controller, Microwaves, Motors, Office Equipment, Packers, Power Controllers
50/60 Hz
1 1/2 hp
3 hp
1 1/2
3
50/60 Hz
50/60
12V DC
1,000 megaohm
Enclosed Power Relay
250V AC
1,000,000
100 mA
Yes
Bracket
Bracket
0.18 in
E-Bracket
6
6
2
25 A
2.17 in
2.52 in
1
6
1.9 W
1.9 W
Manual Push Test Button
Test Button
E-Bracket (Sold Separately)
Bracket
Flame-Resistant
30 msec
Semi-Sealed
G7L Series
Bracket / Square / 6 / 0.25 in
CSA Certified, TUV Certified, UL Listed, VDE/IEC950
AC and DC Indicator
4.23 oz
