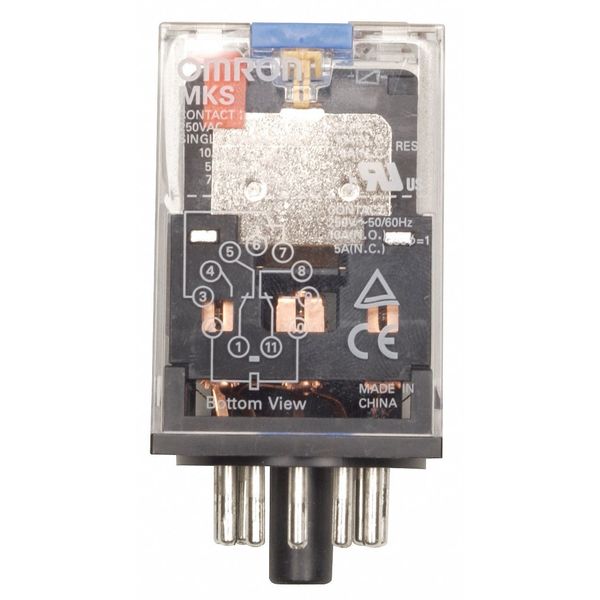

General Purpose Relay, 12V AC Coil Volts, Octal, 8 Pin, DPDT

SKU
Brand Omron
Categories
Description General Purpose Relay, Base Shape Octal, Coil Voltage 12V AC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Plug-In, Flat Pin Width Not Applicable, Number of Pins 8, Pin Shape Round, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 10 A @ 250V (NO), 5 A @ 250V (NC), 7 A @ 250V (NO), Contact Rating (DC) 10 A @ 30V (NO), 5 A @ 30V (NC), Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Lockable
graingerSKU: 5EMG8, mscSKU: , zoro_no: G0992284, mongo_id: 65bbe88b22d7a989a98fcc0c

Web Price

$18.24 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 240V

Base Shape Octal

Base Type Octal

Base Type - Plug In Relay Octal

Body Depth 2.07 in

Body Depth - Relay 1.36 in

Body Height 1.36 in

Body Height - Relay 2.07 in

Body Width 1.36 in

Body Width - Relay 1.36 in

Coil Resistance 13.7 ohm

Coil Voltage 12V AC

Coil Voltage Type AC

Coil Volts 12V AC

Compatible Manufacturer Part Number PF083A, PF083A-D, PF083A-E

Compatible with Manufacturer Model Number PF083A, PF083A-D, PF083A-E

Compatible with Manufacturer Model Number [NEW] PF083A, PF083A-D, PF083A-E

Compatible with Manufacturer Part Number PF083A, PF083A-D, PF083A-E

Contact Form DPDT

Contact Form - Relay DPDT

Contact Material Silver Tin Indium

Contact Rating 10A @ 250VAC/30VDC

Contact Rating (AC) 10 A @ 250V (NO), 5 A @ 250V (NC), 7 A @ 250V (NO)

Contact Rating (DC) 10 A @ 30V (NO), 5 A @ 30V (NC)

Country of Origin (subject to change) China

Current Rating 10 A

DC Contact Rating - Relay 10A @ 28V

Dielectric Strength 1,000V AC Between Contacts of Same Polarity and Terminals of the Same Polarity, 2,500V AC between Coil and Contacts, 2,500V AC Between Current-Carrying Parts Non-Current-Carrying Parts and Opposite Polarity

Electrical Connection Plug-In

Electrical Connection Type Pin

Electrical Operating Durability 100,000

Environmental Protection Enclosed

Features Diode Surge Supression, Varistor Surge Suppression

Flat Pin Width Not Applicable

Frequency 50/60 Hz

Green Environmental Attribute RoHS 2011/65/EU Compliant

Horsepower @ 120V AC Not Rated

Horsepower @ 240V AC Not Rated

HP @ 120V Not Rated

HP @ 240V Not Rated

Input Voltage 12V AC

Insulation Resistance 100 megaohm

Item - Relay General Purpose Relay

Maximum Operating Temperature 140 Degrees F

Maximum Switching Voltage 250V AC, 250V DC

Mechanical Operating Durability 5,000,000

Minimum Operating Temperature -40 Degrees F

Motor Rated Not Rated - Not Rated

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Pins 8

Number of Pins - Relay 8

Operating Current 10 A at 250V AC (Resistive Load), 10 A at 30V DC (Resistive Load), 5 A at 250V AC (Resistive Load), 5 A at 30V DC (Resistive Load), 7 A at 250V AC (Inductive Load)

Overall Depth 2.5 in

Overall Height - Relay 2.5 in

Package Quantity 1

Pin Shape Round

Pins 8

Power Consumption 2.3 VA, 2.7 VA

Power Consumption - Relay 2.3 VA

Push To Test Lockable

Push-To-Test Button Lockable Push Test Button

Push-To-Test Method Lockable

Relay Mounting Style Socket

Resistance Properties Shock-Resistant, Vibration-Resistant
