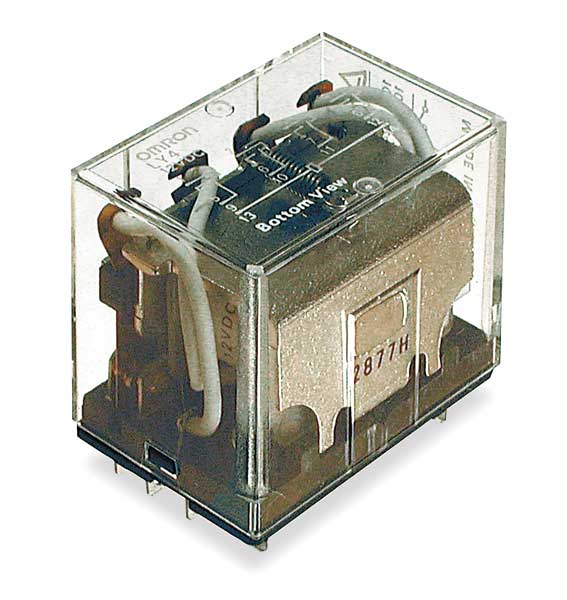

General Purpose Relay, 12V DC Coil Volts, Square, 14 Pin, 4PDT

SKU
Brand Omron
Categories
Description General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form 4PDT, Current Rating 10 A, Electrical Connection Plug-In, Flat Pin Width 0.197 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V, Contact Rating (DC) 10 A @ 24V, 5 A @ 24V, Horsepower @ 120V AC 1/10 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.42 in, Body Height 1.1 in
graingerSKU: , mscSKU: , zoro_no: G1282486, mongo_id: 65bbe6103aaddbd5a9004e8b

Web Price

$23.24 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 120V

Base Shape Square

Base Type Square

Base Type - Plug In Relay Square

Body Depth 1.42 in

Body Depth - Relay 1.1 in

Body Height 1.1 in

Body Height - Relay 1.42 in

Body Width 1.63 in

Body Width - Relay 1.63 in

Coil Resistance 100 ohm

Coil Voltage 12V DC

Coil Voltage Type DC

Coil Volts 12V DC

Compatible Manufacturer Part Number PT14, PT14-0, PT14QN, PTF14A, PTF14A-E

Compatible with Manufacturer Model Number PT14, PT14-0, PT14QN, PTF14A, PTF14A-E

Compatible with Manufacturer Model Number [NEW] PT14, PT14-0, PT14QN, PTF14A, PTF14A-E

Compatible with Manufacturer Part Number PT14, PT14-0, PT14QN, PTF14A, PTF14A-E

Contact Form 4PDT

Contact Form - Relay 4PDT

Contact Material Silver Alloy

Contact Rating 10A @ 120VAC/24VDC

Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V

Contact Rating (DC) 10 A @ 24V, 5 A @ 24V

Country of Origin (subject to change) Indonesia

Current Rating 10 A

DC Contact Rating - Relay 10A @ 24V

Dielectric Strength 1,000V AC Between Contacts of Same Polarity, 2,000V AC between Coil and Contacts, 2,000V AC between Contacts of Different Polarity

Electrical Connection Plug-In

Electrical Connection Type Pin

Electrical Operating Durability 200,000

Environmental Protection Enclosed

Features Arc Barrier Equipped, High Dielectric Strength (2000V AC), Long Dependable Service Life Assured By Ag-Alloy Contacts

Flat Pin Width 0.197 in

Green Environmental Attribute RoHS 2011/65/EU Compliant

Horsepower @ 120V AC 1/10 hp

Horsepower @ 240V AC 1/2 hp

HP @ 120V 1/10 hp

HP @ 240V 1/2 hp

Input Voltage 12V DC

Insulation Resistance 100 megaohm

Item - Relay General Purpose Relay

Maximum Operating Temperature 104 Degrees F

Maximum Switching Voltage 125V DC, 250V AC

Mechanical Operating Durability 100,000,000

Minimum Operating Temperature -13 Degrees F

Motor Rated Yes

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Pins 14

Number of Pins - Relay 14

Operating Current 10 A at 110V AC (Resistive Load), 10 A at 24V DC (Resistive Load), 5 A at 24V DC (Inductive Load), 7.5 A at 110V AC (Inductive Load)

Overall Depth 1.67 in

Overall Height - Relay 1.69 in

Package Quantity 1

Pin Shape Flat

Pins 14

Power Consumption 0.53 W

Power Consumption - Relay 1.5 W

Push To Test Manual

Push-To-Test Button Manual Push Test Button

Push-To-Test Method Manual

Relay Mounting Style Socket

Resistance Properties Shock-Resistant, Vibration-Resistant
