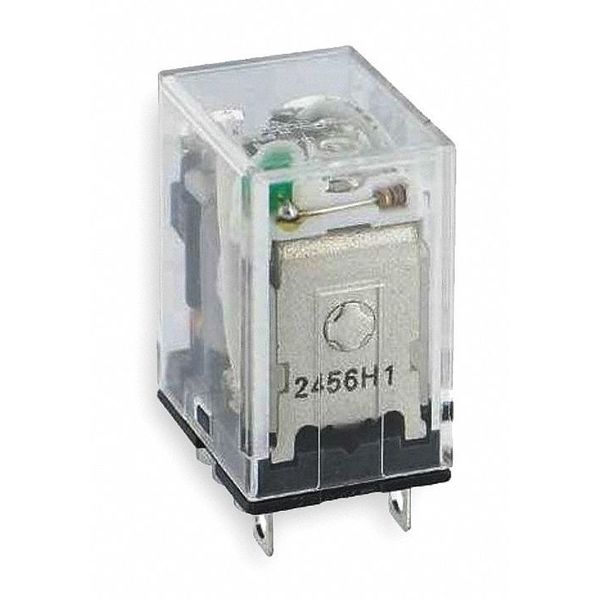

General Purpose Relay, 12V DC Coil Volts, Square, 8 Pin, DPDT

SKU
Brand Omron
Categories
Description General Purpose Relay, Base Shape Square, Coil Voltage 12V DC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Quick-Connect, Flat Pin Width 0.197 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator LED Indicator, Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V, Contact Rating (DC) 10 A @ 24V, 5 A @ 24V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method No Button, Body Depth 1.42 in, Body Height 1.1 in

Web Price

$13.99 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 120V

Base Shape Square

Base Type Square

Base Type - Plug In Relay Square

Body Depth 1.42 in

Body Depth - Relay 1.1 in

Body Height 1.1 in

Body Height - Relay 1.42 in

Body Width 0.85 in

Body Width - Relay 0.85 in

Coil Resistance 160 ohm

Coil Voltage 12V DC

Coil Voltage Type DC

Coil Volts 12V DC

Compatible Manufacturer Part Number PT08, PT08-0, PT08QN, PTF08A, PTF08A-E

Compatible with Manufacturer Model Number PT08, PT08-0, PT08QN, PTF08A, PTF08A-E

Compatible with Manufacturer Model Number [NEW] PT08, PT08-0, PT08QN, PTF08A, PTF08A-E

Compatible with Manufacturer Part Number PT08, PT08-0, PT08QN, PTF08A, PTF08A-E

Contact Form DPDT

Contact Form - Relay DPDT

Contact Material Silver Alloy

Contact Rating 10A @ 120VAC/24VDC

Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V

Contact Rating (DC) 10 A @ 24V, 5 A @ 24V

Country of Origin (subject to change) Indonesia

Current Rating 10 A

DC Contact Rating - Relay 10A @ 24V

Dielectric Strength 1,000V AC Between Contacts of Same Polarity, 2,000V AC between Coil and Contacts, 2,000V AC between Contacts of Different Polarity

Electrical Connection Quick-Connect

Electrical Connection Type Tab

Electrical Operating Durability 500,000

Environmental Protection Enclosed

Flat Pin Width 0.197 in

Green Environmental Attribute RoHS 2011/65/EU Compliant

Horsepower @ 120V AC 1/3 hp

Horsepower @ 240V AC Not Rated

HP @ 120V 1/3 hp

HP @ 240V Not Rated

Input Voltage 12V DC

Insulation Resistance 100 megaohm

Item - Relay General Purpose Relay

Maximum Operating Temperature 104 Degrees F

Maximum Switching Voltage 125V DC, 250V AC

Mechanical Operating Durability 100,000,000

Minimum Operating Temperature -13 Degrees F

Motor Rated Yes

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Pins 8

Number of Pins - Relay 8

Operating Current 10 A at 110V AC (Resistive Load), 10 A at 24V DC (Resistive Load), 5 A at 24V DC (Inductive Load), 7.5 A at 110V AC (Inductive Load)

Overall Depth 1.67 in

Overall Height - Relay 1.67 in

Package Quantity 1

Pin Shape Flat

Pins 8

Power Consumption 0.9 W

Power Consumption - Relay 0.9 W

Push To Test No

Push-To-Test Button No Test Button

Push-To-Test Method No Button

Relay Mounting Style Socket

Resistance Properties Shock-Resistant, Vibration-Resistant
