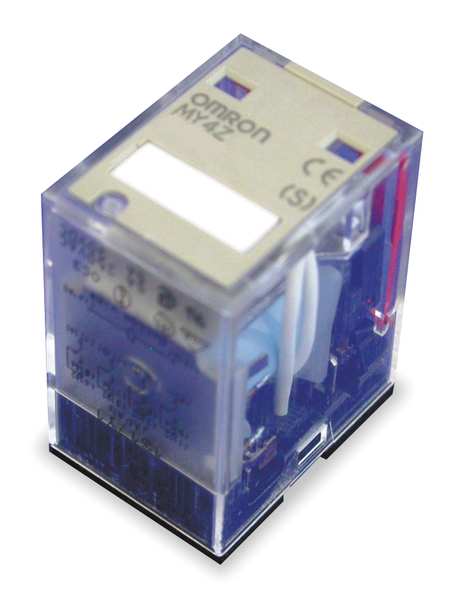

General Purpose Relay, 240V AC Coil Volts, Square, 14 Pin, 4PDT

SKU
Brand Omron
Categories
Description General Purpose Relay, Base Shape Square, Coil Voltage 240V AC, Contact Form 4PDT, Current Rating 5 A, Electrical Connection Quick-Connect, Flat Pin Width 0.102 in, Number of Pins 14, Pin Shape Flat, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 0.8 A @ 240V, 3 A @ 240V, Contact Rating (DC) 1.5 A @ 24V, 3 A @ 24V, Horsepower @ 120V AC 1/6 hp, Horsepower @ 240V AC 1/6 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.42 in, Body Height 1.1 in
graingerSKU: 1YDG2, mscSKU: , zoro_no: G0816724, mongo_id: 65bbe8069a749db82276dc28

Web Price

$18.74 / each

Qty

Product Details

AC Contact Rating - Relay 3A @ 240V

Base Shape Square

Base Type Square

Base Type - Plug In Relay Square

Body Depth 1.42 in

Body Depth - Relay 1.12 in

Body Height 1.1 in

Body Height - Relay 1.38 in

Body Width 0.85 in

Body Width - Relay 0.87 in

Coil Resistance 18,790 ohm

Coil Voltage 240V AC

Coil Voltage Type AC

Coil Volts 240V AC

Compatible Manufacturer Part Number PY14, PY14-02, PY14-Y1, PYF14A-E, PYF14A-N, PYF14S, PYFZ-14-E

Compatible with Manufacturer Model Number PY14, PY14-02, PY14-Y1, PYF14A-E, PYF14A-N, PYF14S, PYFZ-14-E

Compatible with Manufacturer Model Number [NEW] PY14, PY14-02, PY14-Y1, PYF14A-E, PYF14A-N, PYF14S, PYFZ-14-E

Compatible with Manufacturer Part Number PY14, PY14-02, PY14-Y1, PYF14A-E, PYF14A-N, PYF14S, PYFZ-14-E

Contact Form 4PDT

Contact Form - Relay 4PDT

Contact Material Gold Plated Silver Alloy

Contact Rating 3A @ 250VAC/30VDC

Contact Rating (AC) 0.8 A @ 240V, 3 A @ 240V

Contact Rating (DC) 1.5 A @ 24V, 3 A @ 24V

Country of Origin (subject to change) Japan

Current Rating 5 A

DC Contact Rating - Relay 3A @ 28V

Dielectric Strength 1,000V AC Between Contacts of Same Polarity, 2,000V AC Between Coil and Contact, 2,000V AC Between Contacts of Different Polarity

Electrical Connection Quick-Connect

Electrical Connection Type Tab

Electrical Operating Durability 100,000

Environmental Protection Enclosed

Features Cadmium Free Contacts

Flat Pin Width 0.102 in

Frequency 50/60 Hz

Green Environmental Attribute RoHS 2011/65/EU Compliant

Horsepower @ 120V AC 1/6 hp

Horsepower @ 240V AC 1/6 hp

HP @ 120V 1/6 hp

HP @ 240V 1/6 hp

Input Voltage 240V AC

Insulation Resistance 100 megaohm

Item - Relay General Purpose Relay

Maximum Operating Temperature 158 Degrees F

Maximum Switching Voltage 125V DC, 250V AC

Mechanical Operating Durability 20,000,000

Minimum Operating Temperature -67 Degrees F

Motor Rated Yes

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Pins 14

Number of Pins - Relay 14

Operating Current 0.8 A at 220V AC (Inductive Load), 1.5 A at 24V DC (Inductive Load), 3 A at 220V AC (Resistive Load), 3 A at 24V DC (Resistive Load)

Overall Depth 1.67 in

Overall Height - Relay 1.63 in

Package Quantity 1

Pin Shape Flat

Pins 14

Power Consumption 0.9 VA, 1.1 VA

Power Consumption - Relay 1.1 VA

Push To Test Manual

Push-To-Test Button Manual Push Test Button

Push-To-Test Method Manual

Relay Mounting Style Socket

Resistance Properties Shock-Resistant, Vibration-Resistant
