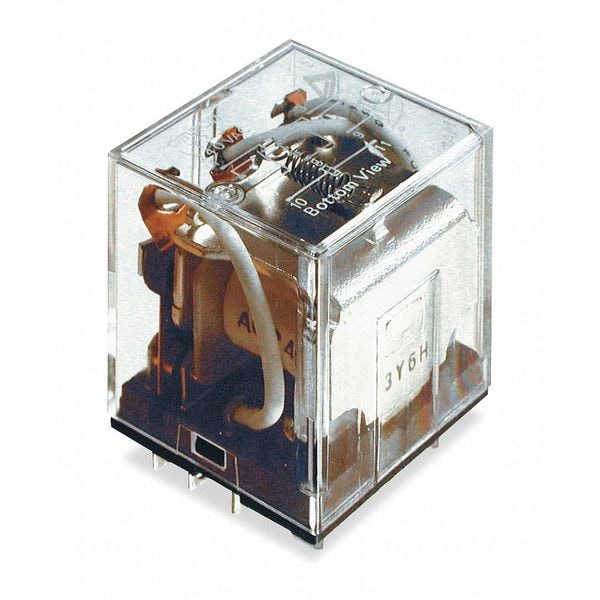

General Purpose Relay, 24V AC Coil Volts, Square, 11 Pin, 3PDT

SKU
Brand Omron
Categories
Description General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Quick-Connect, Flat Pin Width 0.197 in, Number of Pins 11, Pin Shape Flat, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V, Contact Rating (DC) 10 A @ 24V, 5 A @ 24V, Horsepower @ 120V AC 1/10 hp, Horsepower @ 240V AC 1/3 hp, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.44 in, Body Height 1.1 in
graingerSKU: , mscSKU: , zoro_no: G1015305, mongo_id: 65bbe6993aaddbd5a903e16d

Web Price

$21.49 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 120V

Base Shape Square

Base Type Square

Base Type - Plug In Relay Square

Body Depth 1.44 in

Body Depth - Relay 1.1 in

Body Height 1.1 in

Body Height - Relay 1.44 in

Body Width 0.85 in

Body Width - Relay 1.24 in

Coil Resistance 100 ohm

Coil Voltage 24V AC

Coil Voltage Type AC

Coil Volts 24V AC

Compatible Manufacturer Part Number PT11, PT11-0, PT11QN, PTF11A

Compatible with Manufacturer Model Number PT11, PT11-0, PT11QN, PTF11A

Compatible with Manufacturer Model Number [NEW] PT11, PT11-0, PT11QN, PTF11A

Compatible with Manufacturer Part Number PT11, PT11-0, PT11QN, PTF11A

Contact Form 3PDT

Contact Form - Relay 3PDT

Contact Material Silver Alloy

Contact Rating 10A @ 120VAC/24VDC

Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V

Contact Rating (DC) 10 A @ 24V, 5 A @ 24V

Country of Origin (subject to change) Indonesia

Current Rating 10 A

DC Contact Rating - Relay 10A @ 24V

Dielectric Strength 1,000V AC Between Contacts of Same Polarity, 2,000V AC between Coil and Contacts, 2,000V AC between Contacts of Different Polarity

Electrical Connection Quick-Connect

Electrical Connection Type Tab

Electrical Operating Durability 200,000

Environmental Protection Enclosed

Flat Pin Width 0.197 in

Frequency 50/60 Hz

Green Environmental Attribute RoHS 2011/65/EU Compliant

Horsepower @ 120V AC 1/10 hp

Horsepower @ 240V AC 1/3 hp

HP @ 120V 1/10 hp

HP @ 240V 1/3 hp

Input Voltage 24V AC

Insulation Resistance 100 megaohm

Item - Relay General Purpose Relay

Maximum Operating Temperature 104 Degrees F

Maximum Switching Voltage 125V DC, 250V AC

Mechanical Operating Durability 500,000,000

Minimum Operating Temperature -13 Degrees F

Motor Rated Yes

Mounting - Relay Plug In

Mounting Style Plug-In

Number of Pins 11

Number of Pins - Relay 11

Operating Current 10 A at 110V AC (Resistive Load), 10 A at 24V DC (Resistive Load), 5 A at 24V DC (Inductive Load), 7.5 A at 110V AC (Inductive Load)

Overall Depth 1.69 in

Overall Height - Relay 1.69 in

Package Quantity 1

Pin Shape Flat

Pins 11

Power Consumption 0.53 W

Power Consumption - Relay 1.6 VA

Push To Test Manual

Push-To-Test Button Manual Push Test Button

Push-To-Test Method Manual

Relay Mounting Style Socket

Resistance Properties Shock-Resistant, Vibration-Resistant
