Home / General Purpose Relay, 24V AC Coil Volts, Square, 8 Pin, SPDT

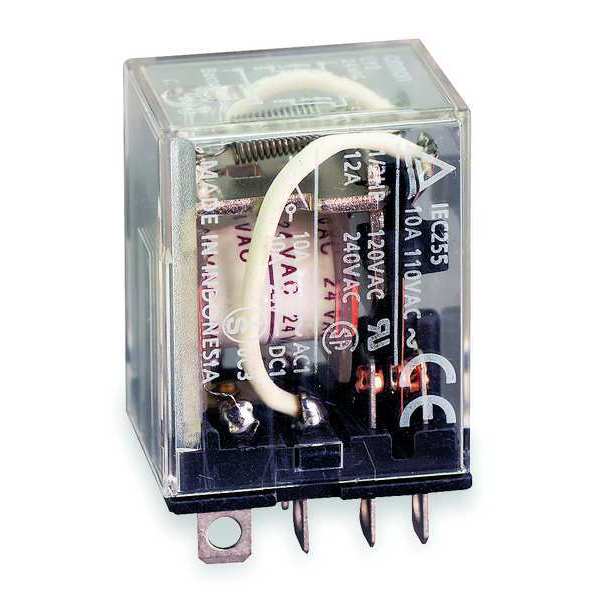

General Purpose Relay, 24V AC Coil Volts, Square, 8 Pin, SPDT

General Purpose Relay, 24V AC Coil Volts, Square, 8 Pin, SPDT

  • Omron
  • General Purpose Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form SPDT, Current Rating 15 A, Electrical Connection Quick-Connect, Flat Pin Width 0.197 in, Number of Pins 8, Pin Shape Flat, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 120V, 15 A @ 120V, Contact Rating (DC) 15 A @ 24V, 7 A @ 24V, Horsepower @ 120V AC Not Rated, Horsepower @ 240V AC Not Rated, Mounting Style Plug-In, Push-To-Test Method Manual, Body Depth 1.42 in, Body Height 1.1 in

    graingerSKU: , mscSKU: , zoro_no: G2418507, mongo_id: 65bbe5a83aaddbd5a9fd99ca

Web Price
$11.69 / each
Qty

Product Details

15A @ 120V
Square
Square
Square
1.42 in
1.1 in
1.1 in
1.42 in
0.85 in
0.85 in
180 ohm
24V AC
AC
24V AC
PT08, PT08-0, PT08QN, PTF08A, PTF08A-E
PT08, PT08-0, PT08QN, PTF08A, PTF08A-E
PT08, PT08-0, PT08QN, PTF08A, PTF08A-E
PT08, PT08-0, PT08QN, PTF08A, PTF08A-E
SPDT
SPDT
Silver Alloy
15A @ 110VAC/24VDC
10 A @ 120V, 15 A @ 120V
15 A @ 24V, 7 A @ 24V
Indonesia
15 A
15A @ 24V
1,000V AC Between Contacts of Same Polarity, 2,000V AC between Coil and Contacts
Quick-Connect
Tab
200,000
Enclosed
Arc Barrier Equipped, High Dielectric Strength (2000V AC), Long Dependable Service Life Assured By Ag-Alloy Contacts
0.197 in
50/60 Hz
RoHS 2011/65/EU Compliant
Not Rated
Not Rated
Not Rated
Not Rated
24V AC
100 megaohm
General Purpose Relay
131 Degrees F
125V DC, 250V AC
500,000,000
-13 Degrees F
Not Rated - Not Rated
Plug In
Plug-In
8
8
10 A at 110V AC (Inductive Load), 15 A at 110V AC (Resistive Load), 15 A at 24V DC (Resistive Load), 7 A at 24V DC (Inductive Load)
1.67 in
1.67 in
1
Flat
8
0.53 W
1.1 VA
Manual
Manual Push Test Button
Manual
Socket
Shock-Resistant, Vibration-Resistant
25 msec
Enclosed
LY Series
Mfr. No. PTF08A-E
J
Socket / Square / 8 / 0.197 in
CE Certified, CSA Certified, TUV Certified, UL Listed
None
1.41 oz
