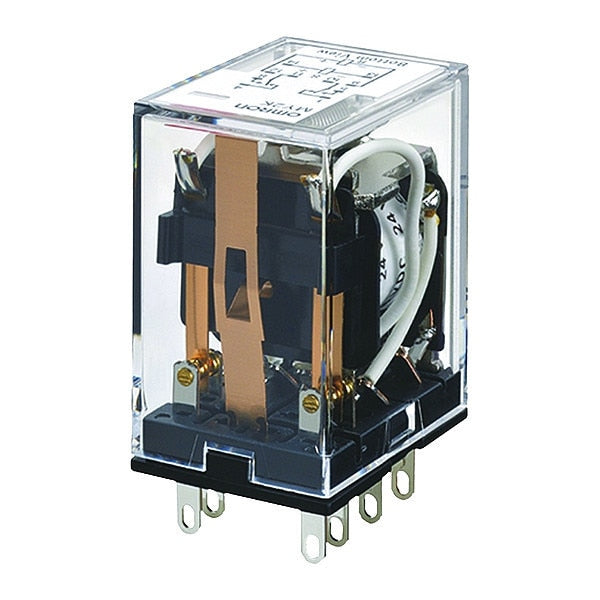

GenPurpose Latching Relay, 24VDC, 3A, 10Pin

SKU
Brand Omron
Categories
Description General Purpose Latching Relay, Base Shape Square, Coil Voltage 24V DC, Contact Form DPDT, Current Rating 3 A, Electrical Connection PCB Terminal, Flat Pin Width 0.102 in, Number of Pins 10, Pin Shape Flat, Sealing Enclosed, Status Indicator Mechanical Flag, Contact Rating (AC) 0.8 A @ 220V, 3 A @ 220V, Contact Rating (DC) 1.5 A @ 24V, 3 A @ 24V, Mounting Style Soldering, Body Depth 1.42 in, Body Height 1.1 in, Body Width 0.85 in, Coil Resistance 470 ohm

Web Price

$60.31 / each

Qty

Product Details

Base Shape Square

Body Depth 1.42 in

Body Height 1.1 in

Body Width 0.85 in

Coil Resistance 470 ohm

Coil Voltage 24V DC

Coil Voltage Type DC

Compatible Manufacturer Part Number PYF-08-PU, PYF-08-PU-L, PYF08M, PYF08S, PYFZ-08, PYFZ-08-E

Compatible with Manufacturer Model Number PYF-08-PU, PYF-08-PU-L, PYF08M, PYF08S, PYFZ-08, PYFZ-08-E

Compatible with Manufacturer Model Number [NEW] PYF-08-PU, PYF-08-PU-L, PYF08M, PYF08S, PYFZ-08, PYFZ-08-E

Compatible with Manufacturer Part Number PYF-08-PU, PYF-08-PU-L, PYF08M, PYF08S, PYFZ-08, PYFZ-08-E

Contact Form DPDT

Contact Material Gold Plated Silver

Contact Rating (AC) 0.8 A @ 220V, 3 A @ 220V

Contact Rating (DC) 1.5 A @ 24V, 3 A @ 24V

Country of Origin (subject to change) Japan

Current Rating 3 A

Dielectric Strength 1,000V AC Between Contacts of Same Polarity, 1,000V AC between Set Coil and Reset Coils, 1,500V AC between Coil and Contacts, 1,500V AC between Contacts of Different Polarity

Electrical Connection PCB Terminal

Electrical Connection Type PCB

Electrical Operating Durability 200,000

Environmental Protection Enclosed

Flat Pin Width 0.102 in

For Use With Control Panel

Frequency 50/60 Hz

Input Voltage 24V DC

Insulation Resistance 100 megaohm

Maximum Operating Temperature 140 Degrees F

Maximum Switching Voltage 125V DC, 250V AC

Mechanical Operating Durability 100,000,000

Minimum Operating Temperature -67 Degrees F

Mounting Style Soldering

Number of Pins 10

Operating Current 0.8 A at 220V AC (Inductive Load), 1.5 A at 24V DC (Inductive Load)), 3 A at 220V AC (Resistive Load), 3 A at 24V DC (Resistive Load)

Overall Depth 1.57 in

Package Quantity 1

Pin Shape Flat

Power Consumption 0.6 W, 1.3 W

Relay Mounting Style PCB

Resistance Properties Contact-Resistant, Insulation-Resistant, Shock-Resistant, Vibration-Resistant

Response Time 15 msec

Sealing Enclosed

Series MY Series

Socket Code Configurator PCB / Square / 10 / 0.102 in

Standards CSA Certified (File No. LR31928), EN 61810-1, LR Certified (Lloyd's Register) File No.98/10014

Status Indicator Mechanical Flag
