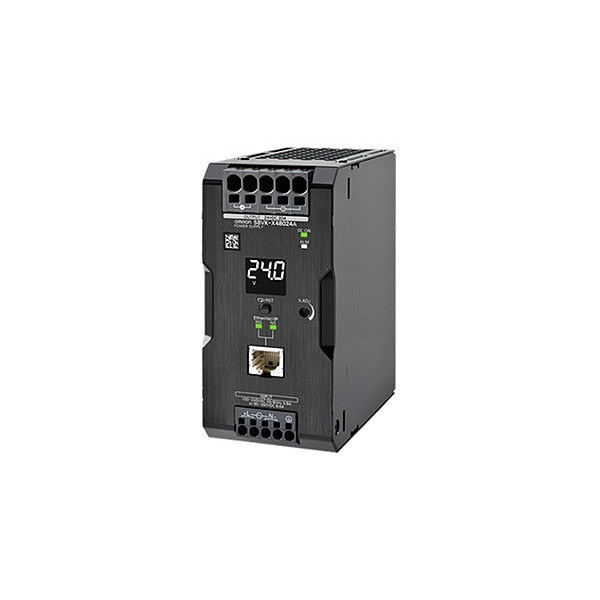

Power Supply, DIN Rail Mount, 60 W, 2.5 A

SKU
Brand Omron
Categories
Description Power Supply, Input Voltage 100 to 240 V AC, Output Voltage 24 V DC, Power Rating 60 W, Output Amps 2.5 A, Mounting DIN Rail, Switching, Height 94.7 mm, Width 55 mm, Depth 92.3 mm, Hz 50 Hz/60 Hz, Phase - Electrical Single, Peak Amps 3 A, IP Rating 20, Output Noise 110 mV @ 20 MHz, Hold Up Time 110 msec @ 230 V AC, 20 msec @ 115 V AC, Status Indicator Green (Alarm), Red (Output)

Web Price

$412.49 / each

Qty

Product Details

Country of Origin (subject to change) China

Depth 92.3 mm

Features Power Boost Function at 150% (240 and 480 W), Product Replacement Time, Output Voltage, Output Current, and More are Acquired on the Network and can be Managed all at Once, Product Status can be Checked On-Site Using the Indication Monitor, Side-By-Side Mounting Possible (upto 55 Degrees C), UL Class 2 Conformance (90 W or Less)

Height 94.7 mm

Hold Up Time 110 msec @ 230 V AC, 20 msec @ 115 V AC

Hz_ 50 Hz/60 Hz

Input Voltage 100 to 240 V AC

IP Rating 20

Mounting DIN Rail

Operating Temp. Range -40 Degrees to 70 Degrees C

Output Amps 2.5 A

Output Noise 110 mV @ 20 MHz

Output Voltage 24 V DC

Package Quantity 1

Peak Amps 3 A
