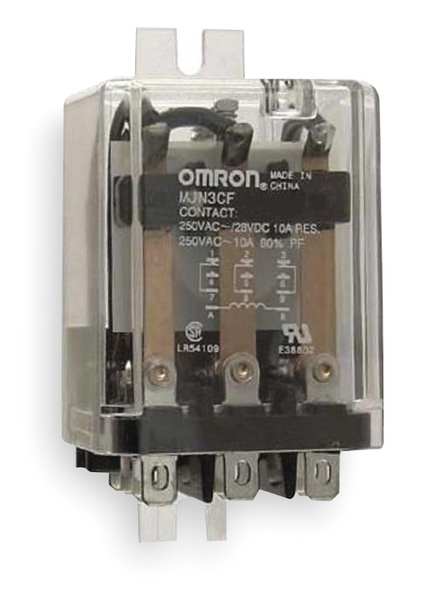

Relay, 11Pin, 3PDT, 10A, 12VDC

SKU
Brand Omron
Categories
Description Flange Mount Relay, Coil Voltage 12V DC, Contact Form 3PDT, Current Rating 30 A, Electrical Connection Quick-Connect Terminal, Number of Pins 11, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 240V, Contact Rating (DC) 10 A @ 28V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Side Flange, Base Shape Octal, Body Depth 1.4 in, Body Height 1.9 in, Body Width 1.52 in, Contact Material Silver Alloy
graingerSKU: 1YCW2, mscSKU: , zoro_no: G0318595, mongo_id: 65bbe7943aaddbd5a90a26de

Web Price

$42.86 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 240V

Base Shape Octal

Body Depth 1.4 in

Body Depth - Relay 1.4 in

Body Height 1.9 in

Body Height - Relay 1.9 in

Body Width 1.52 in

Body Width - Relay 1.53 in

Coil Voltage 12V DC

Coil Voltage Type DC

Coil Volts 12V DC

Contact Form 3PDT

Contact Form - Relay 3PDT

Contact Material Silver Alloy

Contact Rating 10A @ 240VAC/28VDC

Contact Rating (AC) 10 A @ 240V

Contact Rating (DC) 10 A @ 28V

Country of Origin (subject to change) China

Current Rating 30 A

DC Contact Rating - Relay 10A @ 28V

Dielectric Strength 2,500V AC Mutually Insulated Elements, 750V AC Between Open Contact

Electrical Connection Quick-Connect Terminal

Electrical Connection Type Tab

Electrical Operating Durability 100,000

Environmental Protection Enclosed

Features General Purpose Relays, Non-Latching

Frequency 50/60 Hz

Horsepower @ 120V AC 1/3 hp

Horsepower @ 240V AC 1/2 hp

HP @ 120V 1/3 hp

HP @ 240V 1/2 hp

Insulation Resistance 1,000 megaohm

Item - Relay Flange Mount Relay

Maximum Operating Temperature 158 Degrees F

Maximum Switching Capacity 1.2 W

Maximum Switching Voltage 28V AC/DC, 600V AC/DC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -49 Degrees F

Motor Rated Yes

Mounting Side

Mounting - Relay Side Flange

Mounting Style Side Flange

Number of Pins 11

Number of Pins - Relay 11

Operating Current 10 A at 240V AC (Inductive Load), 10 A at 277V AC (Resistive Load), 10 A at 28V DC (Resistive Load), 3 A at 600V AC (Inductive Load)

Overall Depth 2.9 in

Overall Height - Relay 2.9 in

Package Quantity 1

Pins 11

Power Consumption 1.2 W

Power Consumption - Relay 1.2 W

Relay Mounting Style Surface (Side Flange)

Response Time 20 msec

Sealing Enclosed

Series MJN Series

Socket Code Configurator Surface (Side Flange) / Octal / 11

Standards CSA Certified, UL Listed
