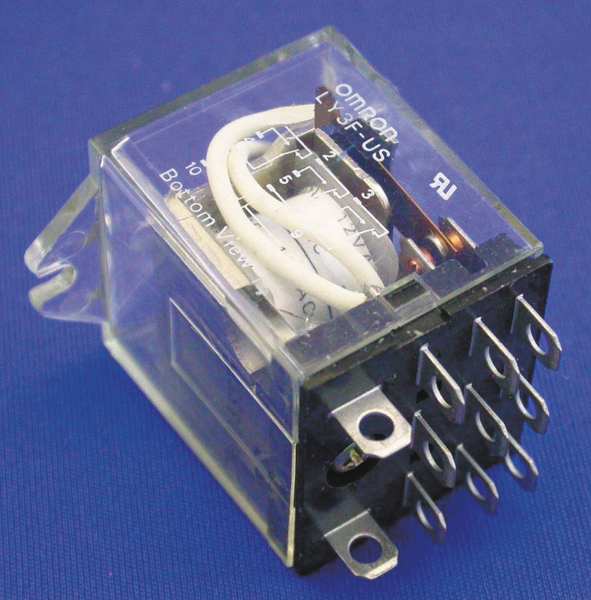

Relay, 11Pin, 3PDT, 10A, 240VAC

SKU
Brand Omron
Categories
Description Flange Mount Relay, Coil Voltage 240V AC, Contact Form 3PDT, Current Rating 10 A, Electrical Connection Plug-In Terminal, Number of Pins 11, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 120V, Contact Rating (DC) 10 A @ 24V, Horsepower @ 120V AC 1/10 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Top Flange, Push-To-Test Method Manual, Base Shape Octal, Body Depth 1.41 in, Body Height 1.73 in, Body Width 1.25 in, Contact Material Silver Alloy

Web Price

$17.69 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 120V

Base Shape Octal

Body Depth 1.41 in

Body Depth - Relay 1.12 in

Body Height 1.73 in

Body Height - Relay 1.4 in

Body Width 1.25 in

Body Width - Relay 1.26 in

Coil Voltage 240V AC

Coil Voltage Type AC

Coil Volts 240V AC

Contact Form 3PDT

Contact Form - Relay 3PDT

Contact Material Silver Alloy

Contact Rating 10A @ 110VAC/24VDC

Contact Rating (AC) 10 A @ 120V

Contact Rating (DC) 10 A @ 24V

Country of Origin (subject to change) Indonesia

Current Rating 10 A

DC Contact Rating - Relay 10A @ 24V

Dielectric Strength 2000V AC, 1000V AC Between contacts of same polarity

Electrical Connection Plug-In Terminal

Electrical Connection Type Pin

Electrical Operating Durability 100,000

Environmental Protection Enclosed

Features Arc Barrier Equipped

Frequency 50/60 Hz

Horsepower @ 120V AC 1/10 hp

Horsepower @ 240V AC 1/2 hp

HP @ 120V 1/10 hp

HP @ 240V 1/2 hp

Insulation Resistance 100 megaohm

Item - Relay Flange Mount Relay

Maximum Operating Temperature 104 Degrees F

Maximum Switching Capacity 0.53 W

Maximum Switching Voltage 125V AC/DC, 250V AC/DC

Mechanical Operating Durability 50,000,000

Minimum Operating Temperature -13 Degrees F

Motor Rated Yes

Mounting Top

Mounting - Relay Top Flange

Mounting Hole Diameter 3 in

Mounting Style Top Flange

Number of Pins 11

Number of Pins - Relay 11

Operating Current 10 A at 110V AC (Resistive Load), 10 A at 24V DC (Resistive Load), 5 A at 24V DC (Inductive Load), 7.5 A at 110V AC (Inductive Load)

Overall Depth 1.66 in

Overall Height - Relay 1.65 in

Package Quantity 1

Pins 11

Power Consumption 0.53 W

Power Consumption - Relay 2.0 VA

Push To Test Manual

Push-To-Test Button Manual Push Test Button

Push-To-Test Method Manual

Relay Mounting Style Surface (Top Flange)

Response Time 25 msec

Sealing Enclosed
