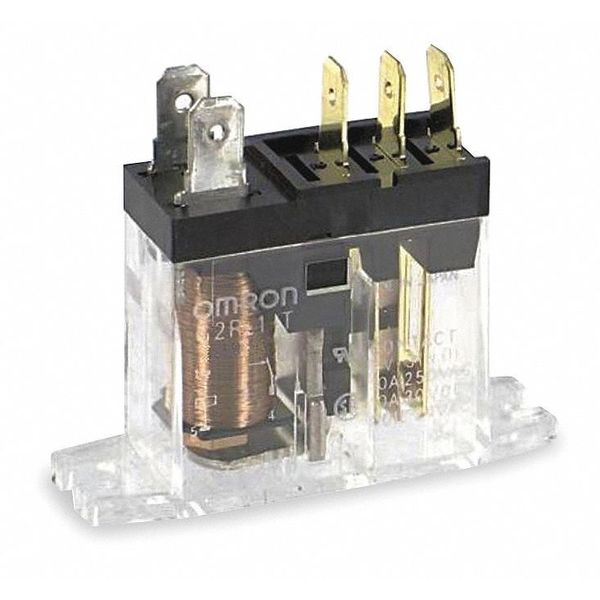

Relay, 5Pin, SPDT, 10A, 24VAC

SKU
Brand Omron
Categories
Description Flange Mount Relay, Base Shape Square, Coil Voltage 24V AC, Contact Form SPDT, Current Rating 10 A, Electrical Connection Quick-Connect, Flat Pin Width 0.187 in, Number of Pins 5, Sealing Flux Protection, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 250V, Contact Rating (DC) 10 A @ 30V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/2 hp, Mounting Style Top Flange, Body Depth 1.16 in, Body Height 1.73 in, Body Width 0.52 in, Coil Resistance 260 ohm

Web Price

$8.94 / each

Qty

Minimum order: 2

Product Details

AC Contact Rating - Relay 10A @ 240V

Base Shape Square

Base Type Square

Body Depth 1.16 in

Body Depth - Relay 0.56 in

Body Height 1.73 in

Body Height - Relay 1.16 in

Body Width 0.52 in

Body Width - Relay 1.2 in

Coil Resistance 260 ohm

Coil Voltage 24V AC

Coil Voltage Type AC

Coil Volts 24V AC

Contact Form SPDT

Contact Form - Relay SPDT

Contact Material Silver Alloy

Contact Rating 10A @ 250VAC/30VDC

Contact Rating (AC) 10 A @ 250V

Contact Rating (DC) 10 A @ 30V

Country of Origin (subject to change) Malaysia

Current Rating 10 A

DC Contact Rating - Relay 10A @ 28V

Dielectric Strength 1,000V AC Between Contacts of Same Polarity, 3,000V AC Between Contacts of Different Polarity, 5,000V AC Between Coil and Contacts

Electrical Connection Quick-Connect

Electrical Connection Type Tab

Electrical Operating Durability 100,000

Environmental Protection Flux Sealed

Features Creepage Distance of 8.0 mm M in Between Coil and Contact

Flat Pin Width 0.187 in

Frequency 50/60 Hz

Horsepower @ 120V AC 1/3 hp

Horsepower @ 240V AC 1/2 hp

HP @ 120V 1/3 hp

HP @ 240V 1/2 hp

Input Voltage 24V AC

Insulation Resistance 1,000 megaohm

Item - Relay Flange Mount Relay

Maximum Operating Temperature 158 Degrees F

Maximum Switching Voltage 125V DC, 380V AC

Mechanical Operating Durability 10,000,000

Minimum Operating Temperature -40 Degrees F

Minimum Switching Current 100 mA

Motor Rated Yes

Mounting Top

Mounting - Relay Top Flange

Mounting Hole Diameter 0.05 in

Mounting Style Top Flange

Number of Pins 5

Number of Pins - Relay 5

Operating Current 10 A at 250V AC (Resistive Load), 10 A at 30V DC (Resistive Load), 5 A at 30V DC (Inductive Load), 7.5 A at 250V AC (Inductive Load)

Overall Depth 1.5 in

Overall Height - Relay 1.49 in

Package Quantity 1

Pins 5

Power Consumption 0.9 VA

Power Consumption - Relay 0.9 VA

Relay Mounting Style Surface (Top Flange)

Resistance Properties Contact-Resistant, Insulation-Resistant, Shock-Resistant, Vibration-Resistant

Response Time 10 msec

Sealing Flux Protection

Series G2R Power Series

Socket Code Configurator Surface (Top Flange) / Square / 5 / 0.187 in
