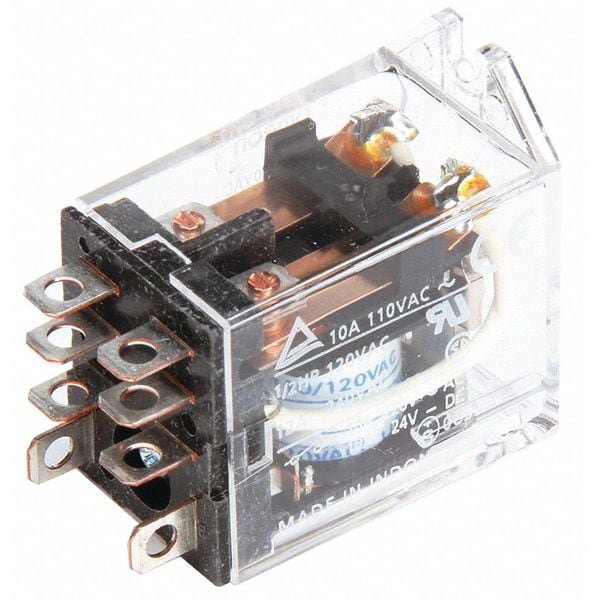

Relay, 8Pin, DPDT, 10A, 24VAC

SKU
Brand Omron
Categories
Description Flange Mount Relay, Coil Voltage 24V AC, Contact Form DPDT, Current Rating 10 A, Electrical Connection Plug-In Terminal, Number of Pins 8, Sealing Enclosed, Status Indicator No Indicator, Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V, Contact Rating (DC) 10 A @ 24V, 5 A @ 24V, Horsepower @ 120V AC 1/3 hp, Horsepower @ 240V AC 1/3 hp, Mounting Style Flange, Push-To-Test Method Manual, Base Shape Octal, Body Depth 1.39 in, Body Height 1.73 in, Body Width 0.88 in, Coil Resistance 180 ohm
graingerSKU: , mscSKU: , zoro_no: G0400224, mongo_id: 65bbe6763aaddbd5a902fc94

Web Price

$14.69 / each

Qty

Product Details

AC Contact Rating - Relay 10A @ 120V

Base Shape Octal

Body Depth 1.39 in

Body Depth - Relay 1.14 in

Body Height 1.73 in

Body Height - Relay 1.4 in

Body Width 0.88 in

Body Width - Relay 0.89 in

Coil Resistance 180 ohm

Coil Voltage 24V AC

Coil Voltage Type AC

Coil Volts 24V AC

Contact Form DPDT

Contact Form - Relay DPDT

Contact Material Silver Alloy

Contact Rating 10A @ 110VAC/24VDC

Contact Rating (AC) 10 A @ 120V, 7.5 A @ 120V

Contact Rating (DC) 10 A @ 24V, 5 A @ 24V

Country of Origin (subject to change) Indonesia

Current Rating 10 A

DC Contact Rating - Relay 10A @ 24V

Dielectric Strength 1,000V AC Between Contacts of Same Polarity, 2,000V AC Between Coil and Contact, 2,000V AC Between Contacts of Different Polarity

Electrical Connection Plug-In Terminal

Electrical Connection Type Pin

Electrical Operating Durability 500,000

Environmental Protection Enclosed

Features Arc Barrier Equipped

Frequency 50/60 Hz

Horsepower @ 120V AC 1/3 hp

Horsepower @ 240V AC 1/3 hp

HP @ 120V 1/3 hp

Insulation Resistance 100 megaohm

Item - Relay Flange Mount Relay

Maximum Operating Temperature 131 Degrees F

Maximum Switching Capacity 1.2 VA

Maximum Switching Voltage 125V AC/DC, 250V AC/DC

Mechanical Operating Durability 50,000,000

Minimum Operating Temperature -13 Degrees F

Motor Rated Yes

Mounting Top

Mounting - Relay Top Flange

Mounting Hole Diameter 2 in

Mounting Style Flange

Number of Pins 8

Number of Pins - Relay 8

Number of Terminals 8

Operating Current 10 A at 110V AC (Resistive Load), 10 A at 24V DC (Resistive Load), 5 A at 24V DC (Inductive Load), 7.5 A at 110V AC (Inductive Load)

Overall Depth 1.64 in

Overall Height - Relay 1.65 in

Package Quantity 1

Pins 8

Power Consumption 1 VA, 1.2 VA

Power Consumption - Relay 1.1 VA

Push To Test Manual

Push-To-Test Button Manual Push Test Button

Push-To-Test Method Manual

Relay Mounting Style Surface (Side Flange)

Response Time 25 msec

Sealing Enclosed
