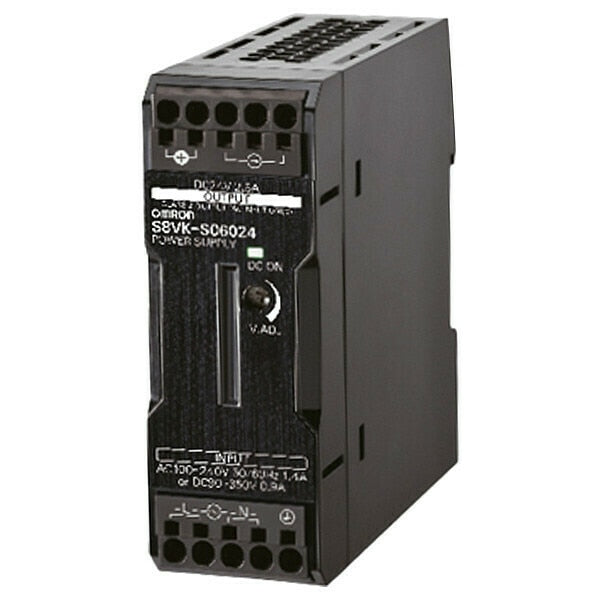

Switching Power Supplies

SKU
Brand Omron
Categories
Description Switching Power Supply, Input Voltage 265 to 300 V AC, 85 to 264 V AC, 90 to 350 V DC, Output Voltage 24 V DC, Power Rating 60 W, Output Amps 2.5 A, Mounting Side by Side, Switching, Height 94.7 mm, Width 32 mm, Depth 90 mm, Hz 50 Hz/60 Hz, Phase - Electrical Single, IP Rating 20, Output Noise 190 mV Maximum, Status Indicator Green LED, Features Five Years Warranty, Power Boost Function at 120 Percent, Operating Temp. Range -40 Degrees to 70 Degrees C

Web Price

$187.49 / each

Qty

Product Details

Country of Origin (subject to change) China

Depth 90 mm

Features Five Years Warranty, Power Boost Function at 120%

Height 94.7 mm

Hz_ 50 Hz/60 Hz

Input Voltage 265 to 300 V AC, 85 to 264 V AC, 90 to 350 V DC

IP Rating 20

Mounting Side by Side

Operating Temp. Range -40 Degrees to 70 Degrees C

Output Amps 2.5 A

Output Noise 190 mV Maximum

Output Voltage 24 V DC

Package Quantity 1

Phase - Electrical Single

Power Rating 60 W

Standards BIS: IS 13252, cUL: CSA C22.2 No107.1, cUR: CSA C22.2 62368-1, EN 55011 Class B, EN 61000-3-2, EN 61204-3, EN 61204-3 Class B, EN 62368-1, EN: EN 62477-1, EN/IEC 61558-2-16:2009+A1:2013, F47-0706 (200 to 240 VAC Input), Lloyd's Register, PELV (EN/IEC 60204-1), UL 508, UL UR: UL 62368-1

Status Indicator Green LED

Style Switching

Width 32 mm
