Switching Power Supplies

SKU
Brand Omron
Categories

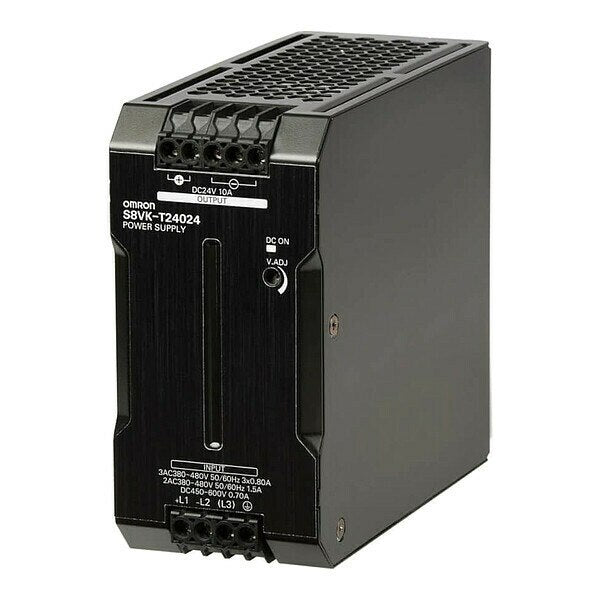

Description Switching Power Supply, Input Voltage 380 to 480 V AC, 450 to 600 V DC, Output Voltage 24 V DC, Power Rating 240 W, Output Amps 10 A, Mounting Front-Mounting Bracket, Switching, Height 125 mm, Width 60 mm, Depth 150 mm, Hz 50 Hz/60 Hz, Phase - Electrical Three, IP Rating 20, Output Noise 50 mV Maximum, Status Indicator Green LED, Features Power Boost Function at 120 Percent, Three Year Warranty, Operating Temp. Range -40 Degrees to 70 Degrees C
graingerSKU: , mscSKU: , zoro_no: G910080922, mongo_id: 65bbe97422d7a989a9957e88

Web Price

$667.49 / each

Qty

Product Details

Country of Origin (subject to change) China

Depth 150 mm

Features Power Boost Function at 120%, Three Year Warranty

Height 125 mm

Hz_ 50 Hz/60 Hz

Input Voltage 380 to 480 V AC, 450 to 600 V DC

IP Rating 20

Mounting Front-Mounting Bracket

Operating Temp. Range -40 Degrees to 70 Degrees C

Output Amps 10 A

Output Noise 50 mV Maximum

Output Voltage 24 V DC

Package Quantity 1

Phase - Electrical Three

Power Rating 240 W

Standards BIS, CSA C22.2 61010-2-201 (cUL), EAC (TR CU 004 / 2011, TR CU 020 / 2011), EMI:EN 61204-3 Class B, EMS:EN 61204-3, EN 55011 Class B, EN 61000-3-2, EN/IEC 61010-2-201, EN/IEC 61558-2-16, EN/IEC 62477-1, PELV (EN/IEC 60204-1), RCM (EN61000-6-4), SELV(EN/IEC 61558-2-16), SEMI:F47-0706, UL 508, UL 61010-2-201

Status Indicator Green LED

Style Switching

Width 60 mm
