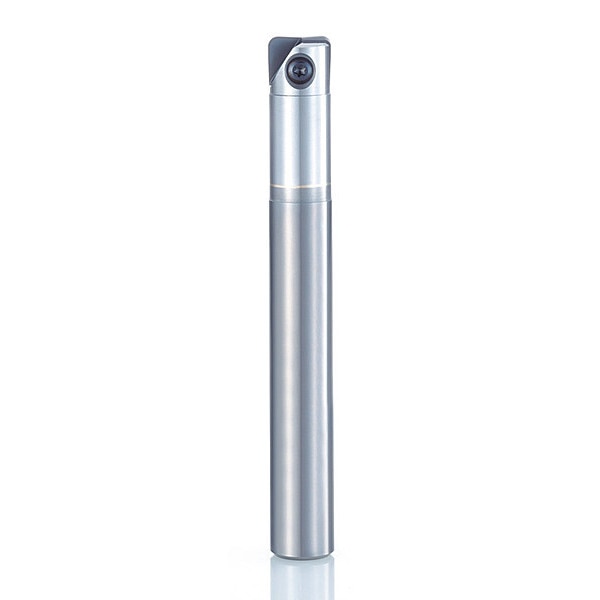

Indexable Profiling End Mill, 53100 Series, Carbide, 0.1200 in Depth of Cut

SKU
Brand Osg
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 0.6250 in, Depth of Cut 0.1200 in, Shank Dia. 5/8 in, Overall Length 5-1/2 in, ANSI Code PFR-R0625SA0625-S550CS, Compatible Hardware 7808129, 7808151, 7808208, Coolant Fed Non-Coolant Through, Coolant Hole Shape Round, Cutting Application Superior milling

Web Price

$1,002.49 / each

Qty

Product Details

ANSI Code PFR-R0625SA0625-S550CS

Arbor Dia. 0.7500

Compatible Hardware 7808129, 7808151, 7808208

Coolant Fed Non-Coolant Through

Coolant Hole Shape Round

Country of Origin (subject to change) Japan

Cutting Application Superior milling

Cutting Direction Right Hand

Depth of Cut 0.1200 in

Features Corner Radius Precision ( +/-8micron m), End Mill Style, Spiral Cutting Edge, Very High Insert Diameter (+0 / -20micron m)

Head Dia. 0.6250

Head Projection Length Not Applicable

Hub Outside Dia. 2

Includes 7808117 Clamping Screw FS30686RB (Torx 8), 7808118 Clamping Screw FS35610RB (Torx 10), 7808119 Clamping Screw FS40613RB (Torx 15), 7808120 Clamping Screw FS50615RB (Torx 20), 7808121 Clamping Screw FS60620RB (Torx 20), 7808122 Clamping Screw FS80624RB (Torx 30), 7808123 Clamping Screw FS25669RB (Torx 7), 7808124 Clamping Screw FS20652RB (Torx 6), 7808203 Wrench T6-D (Torx 6), 7808204 Wrench T7-D (Torx 7), 7808205 Wrench T8-D (Torx 8), 7808207 Wrench T10-D (Torx 10), 7808208 Wrench T15-D (Torx 15), 7808209 Wrench T20-D (Torx 20), 7808212 Wrench T30-T (Torx 30)

Insert Holding Type Clamping Screw

Insert Shape Triangle

Insert Size 12.00mm

Insert Style TNKU

Material - Machining Carbide

Max. Cutting Dia. 0.6250 in

Max. Speed 590 RPM

Min. Cutting Dia. 5/8 in

Neck Dia. 0.6050 in

Number of Coolant Holes 4

Number of Inserts 2

Overall Length 5-1/2 in
