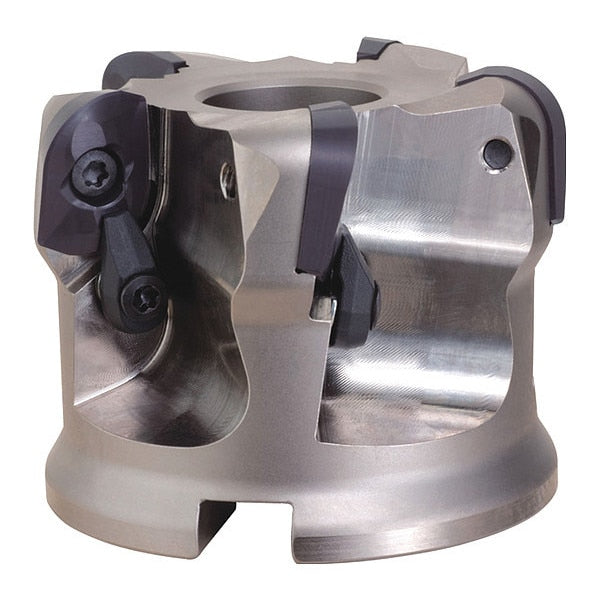

Indexable Profiling End Mill

SKU
Brand Osg
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 63.00mm, Depth of Cut 0.118 in to 0.079 in, Overall Length 70.00mm, ANSI Code PDR20R063M25.4-3, Compatible Hardware 20IP-T Wrench, CSPB-5 Clamping Screw, CSY-20 Metal Weight Set Washer, Coolant Fed Non-Coolant Through, Coolant Hole Shape Round, Cutting Application 3-D Machining, Roughing and Semi-Roughing

Web Price

$803.74 / each

Qty

Product Details

ANSI Code PDR20R063M25.4-3

Arbor Dia. 16.00mm

Compatible Hardware 20IP-T Wrench, CSPB-5 Clamping Screw, CSY-20 Metal Weight Set Washer

Coolant Fed Non-Coolant Through

Coolant Hole Shape Round

Country of Origin (subject to change) Japan

Cutting Application 3-D Machining, Roughing and Semi-Roughing

Cutting Direction Right Hand

Depth of Cut 0.118 in to 0.079 in

Features Double Clamping (Screw and Top Clamp), End Mill and Face Mill Style, Enlarged Support Behind Insert Seat, Robust Insert with Variable Negative Geometry, Spiral Edge Form, Wiper

Head Dia. 60.00 mm

Head Projection Length Not Applicable

Hub Outside Dia. 40.00mm

Insert Holding Type Clamping Screw

Insert Shape Round

Insert Size 63.00mm

Insert Style ADMT20

Max. Cutting Dia. 63.00mm

Max. Speed 590 RPM

Min. Cutting Dia. 43.00mm

Number of Coolant Holes 3

Number of Inserts 2
