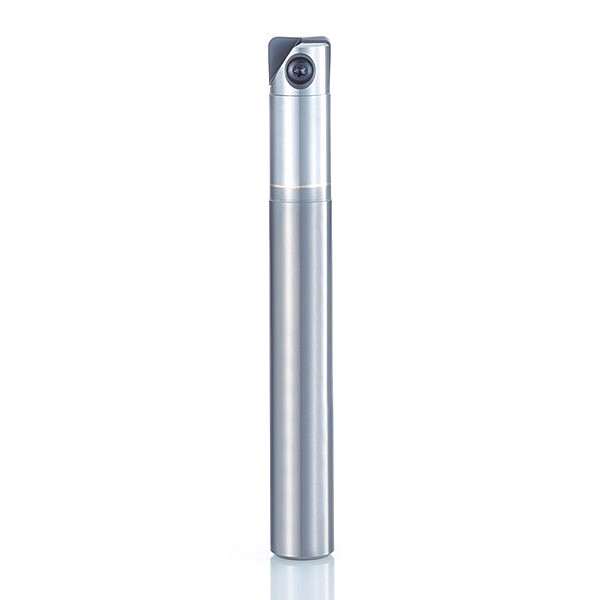

Indexable Profiling End Mill, 78005 Series, Carbide, 0.0930 in Depth of Cut

SKU
Brand Osg
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 0.2500 in, Depth of Cut 0.0930 in, Shank Dia. 1/4 in, Overall Length 4 in, ANSI Code PFR-R0250SA0250-L400CS, Compatible Hardware 7808112, 7808208, Coolant Fed Non-Coolant Through, Coolant Hole Shape Round, Cutting Application Superior milling
graingerSKU: , mscSKU: , zoro_no: G8295536, mongo_id: 65bbe6f73aaddbd5a9066f75

Web Price

$703.74 / each

Qty

Product Details

ANSI Code PFR-R0250SA0250-L400CS

Compatible Hardware 7808112, 7808208

Coolant Fed Non-Coolant Through

Coolant Hole Shape Round

Country of Origin (subject to change) Japan

Cutting Application Superior milling

Cutting Direction Right Hand

Depth of Cut 0.0930 in

Features Corner Radius Precision ( +/-8micron m), End Mill Style, Spiral Cutting Edge, Very High Insert Diameter (+0 / -20micron m)

Head Dia. 0.2500

Head Projection Length Not Applicable

Includes 7808117 Clamping Screw FS30686RB (Torx 8), 7808118 Clamping Screw FS35610RB (Torx 10), 7808119 Clamping Screw FS40613RB (Torx 15), 7808120 Clamping Screw FS50615RB (Torx 20), 7808121 Clamping Screw FS60620RB (Torx 20), 7808122 Clamping Screw FS80624RB (Torx 30), 7808123 Clamping Screw FS25669RB (Torx 7), 7808124 Clamping Screw FS20652RB (Torx 6), 7808203 Wrench T6-D (Torx 6), 7808204 Wrench T7-D (Torx 7), 7808205 Wrench T8-D (Torx 8), 7808207 Wrench T10-D (Torx 10), 7808208 Wrench T15-D (Torx 15), 7808209 Wrench T20-D (Torx 20), 7808212 Wrench T30-T (Torx 30)

Insert Holding Type Clamping Screw

Insert Shape Round

Insert Size 12.00mm

Insert Style RPH_12

Length Below Shank 1.9680 in

Material - Machining Carbide

Max. Cutting Dia. 0.2500 in

Max. Speed 1970 RPM

Min. Cutting Dia. 1/4 in

Modular Head No

Neck Dia. 0.2250 in

Neck Type Parallel
