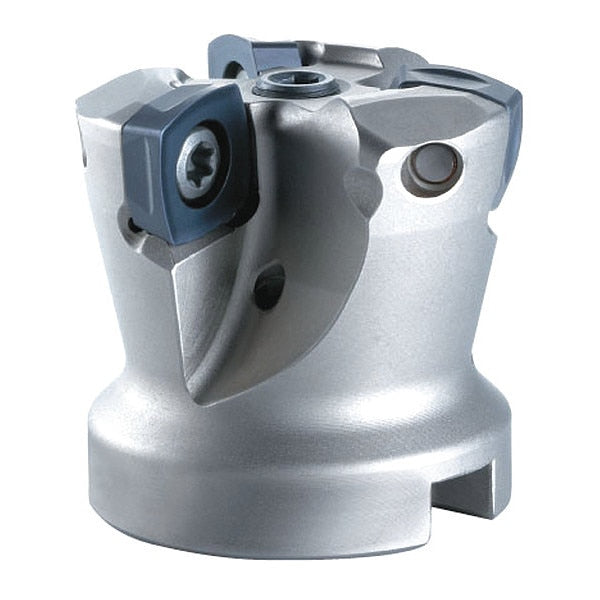

Indexable Profiling End Mill

SKU
Brand Osg
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 38.20 mm, Depth of Cut 1.00mm, Overall Length 40.00mm, ANSI Code PHC09R040M16-4, Compatible Hardware 7808111, 7808150, 7808208, Coolant Fed Coolant Through, Cutting Application Rough Milling

Web Price

$686.24 / each

Qty

Product Details

ANSI Code PHC09R040M16-4

Arbor Dia. 1.5000

Compatible Hardware 7808111, 7808150, 7808208

Coolant Fed Coolant Through

Country of Origin (subject to change) Japan

Cutting Application Rough Milling

Cutting Direction Right Hand

Depth of Cut 1.00mm

Features Economical 4 Corner Insert with a Chip Breaker that Enhances Cutting Performance While Maintaining Rigidity, End Mill and Face Mill Style, High Feed Design Reduces Radial Cutting Forces and Tool Vibration, Small Cutting Angle Reduces Actual Chip Thickness

Head Dia. 47.00 mm

Head Projection Length Not Applicable

Hub Outside Dia. 6

Insert Holding Type Clamping Screw

Insert Shape Square

Insert Size 9.52mm

Insert Style SDMT09

Max. Cutting Dia. 38.20 mm

Max. Speed 655 RPM

Min. Cutting Dia. 28.20mm

Number of Coolant Holes 4

Number of Inserts 4
