Home / Indexable Profiling End Mill, ANSI Code: PSE11R063M22-8

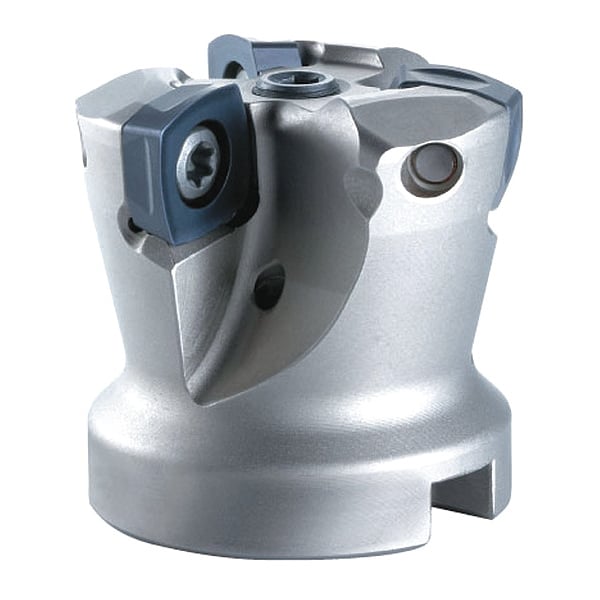

Indexable Profiling End Mill, ANSI Code: PSE11R063M22-8

SKU
Brand Osg
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 63.40 mm, Depth of Cut 0.0600 in, Overall Length 50.00mm, ANSI Code PHC12R080M27-7, Compatible Hardware 7808113, 7808150, 7808209, Coolant Fed Coolant Through, Coolant Hole Shape Round, Cutting Application Rough Milling
graingerSKU: , mscSKU: , zoro_no: G8298290, mongo_id: 65bbe8569a749db822788657

Web Price

$903.74 / each

Qty

Product Details

ANSI Code PHC12R080M27-7

Arbor Dia. 22.00mm

Compatible Hardware 7808113, 7808150, 7808209

Coolant Fed Coolant Through

Coolant Hole Shape Round

Country of Origin (subject to change) Japan

Cutting Application Rough Milling

Cutting Direction Right Hand

Depth of Cut 0.0600 in

Features Economical 4 Corner Insert with a Chip Breaker that Enhances Cutting Performance While Maintaining Rigidity, End Mill and Face Mill Style, High Feed Design Reduces Radial Cutting Forces and Tool Vibration, Small Cutting Angle Reduces Actual Chip Thickness

Head Dia. 76.00 mm

Head Projection Length Not Applicable

Hub Outside Dia. 63.00mm

Insert Holding Type Clamping Screw

Insert Shape Square

Insert Size 12.70mm

Insert Style SXMT12

Max. Cutting Dia. 63.40 mm

Max. Speed 590 RPM

Min. Cutting Dia. 63.4mm

Number of Coolant Holes 7

Number of Inserts 7
