Home / Indexable Profiling End Mill, CV40 Series, 0.0670 in Depth of Cut

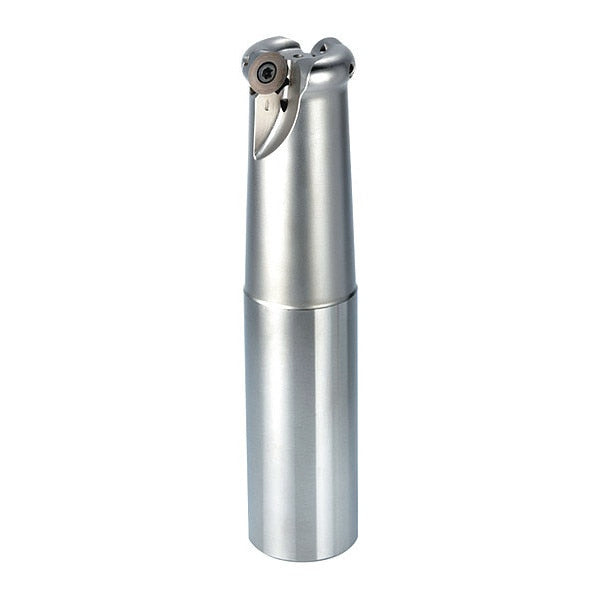

Indexable Profiling End Mill, CV40 Series, 0.0670 in Depth of Cut

SKU
Brand Osg
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 24.00mm, Depth of Cut 0.0930 in, Shank Dia. 25.00mm, Overall Length 140.00mm, ANSI Code PRC12R024SS25-2S, Compatible Hardware 7808112, 7808208, Connection Size CV40, Coolant Fed Coolant Through, Cutting Application Roughing

Web Price

$601.24 / each

Qty

Product Details

ANSI Code PRC12R024SS25-2S

Compatible Hardware 7808112, 7808208

Connection Size CV40

Coolant Fed Coolant Through

Country of Origin (subject to change) Japan

Cutting Application Roughing

Cutting Direction Right Hand

Depth of Cut 0.0930 in

Features End Mill and Face Mill Styles, Inch and Metric, Insert Rotation Notch, Large Body Relief, Secure Insert Clamping with Screws and Wide Chip Pockets

Head Dia. 25.00mm

Head Projection Length Not Applicable

Insert Holding Type Clamping Screw

Insert Shape round

Insert Size 12.00mm

Insert Style RPH_12

Max. Cutting Dia. 24.00mm

Max. Speed 1,970 RPM

Min. Cutting Dia. 12.00mm

Number of Coolant Holes 2

Number of Inserts 2

Overall Length 140.00mm
