Home / Indexable Profiling End Mill, CV40 Series, 0.0910 in Depth of Cut

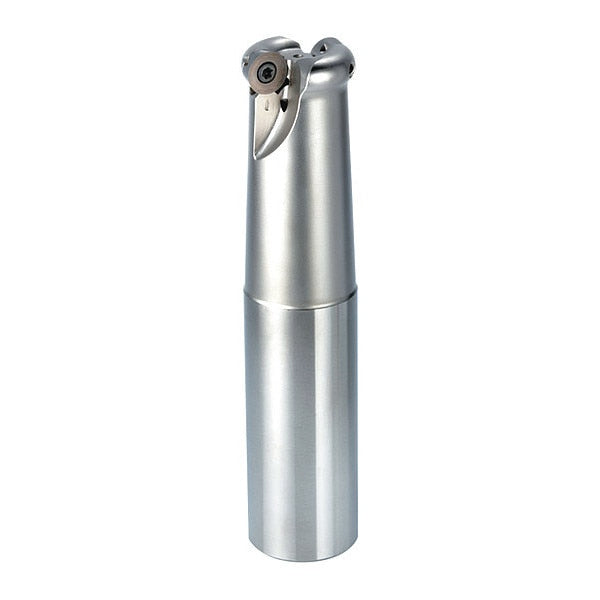

Indexable Profiling End Mill, CV40 Series, 0.0910 in Depth of Cut

SKU
Brand Osg
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 1.5000 in, Depth of Cut 0.1250 in, Shank Dia. 1-1/4 in, Overall Length 9.8420 in, ANSI Code PRC16R150SA125-2L, Compatible Hardware 7808113, 7808151, 7808209, Connection Size CV40, Coolant Fed Coolant Through, Cutting Application Rough Milling

Web Price

$761.24 / each

Qty

Product Details

ANSI Code PRC16R150SA125-2L

Compatible Hardware 7808113, 7808151, 7808209

Connection Size CV40

Coolant Fed Coolant Through

Country of Origin (subject to change) Luxembourg

Cutting Application Rough Milling

Cutting Direction Right Hand

Depth of Cut 0.1250 in

Features End Mill and Face Mill Styles, Inch and Metric, Insert Rotation Notch, Large Body Relief, Secure Insert Clamping with Screws and Wide Chip Pockets

Head Dia. 1.2500

Head Projection Length Not Applicable

Insert Holding Type Clamping Screw

Insert Shape Round

Insert Size 16.00mm

Insert Style RPH_16

Max. Cutting Dia. 1.5000 in

Max. Speed 1,970 RPM

Min. Cutting Dia. 0.0870 in

Number of Coolant Holes 2

Number of Inserts 2

Overall Length 9.8420 in
