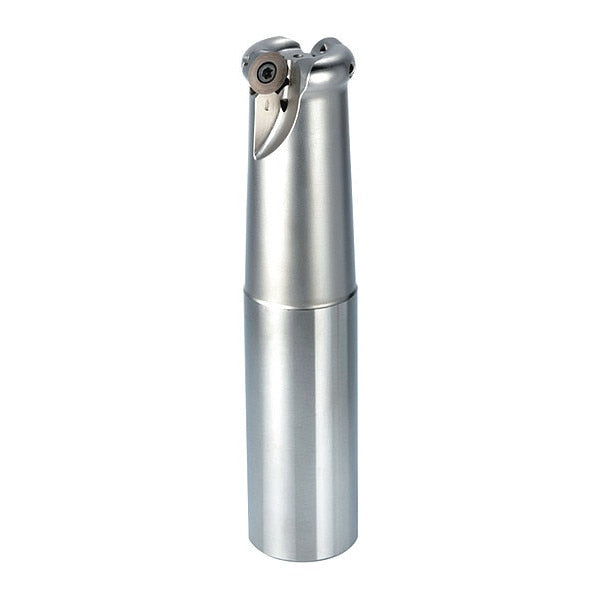

Indexable Profiling End Mill, CV50 Series, 0.0550 in Depth of Cut

SKU
Brand Osg
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 20.00mm, Depth of Cut 0.0780 in, Shank Dia. 20.00mm, Overall Length 180.00mm, ANSI Code PRC10R020SS20-2L, Compatible Hardware 7808116, 7808207, Connection Size CV50, Coolant Fed Coolant Through, Cutting Application Roughing
graingerSKU: , mscSKU: , zoro_no: G8295816, mongo_id: 65bbe9ad22d7a989a996d761

Web Price

$396.24 / each

Qty

Product Details

ANSI Code PRC10R020SS20-2L

Compatible Hardware 7808116, 7808207

Connection Size CV50

Coolant Fed Coolant Through

Country of Origin (subject to change) Japan

Cutting Application Roughing

Cutting Direction Right Hand

Depth of Cut 0.0780

Features End Mill and Face Mill Styles, Inch and Metric, Insert Rotation Notch, Large Body Relief, Secure Insert Clamping with Screws and Wide Chip Pockets

Head Dia. 20.00mm

Head Projection Length Not Applicable

Insert Holding Type Clamping Screw

Insert Shape round

Insert Size 10.00mm

Insert Style RPH_10

Max. Cutting Dia. 20.00mm

Max. Speed 1,970 RPM

Min. Cutting Dia. 10.00mm

Number of Coolant Holes 2

Number of Inserts 2

Overall Length 180.00mm
