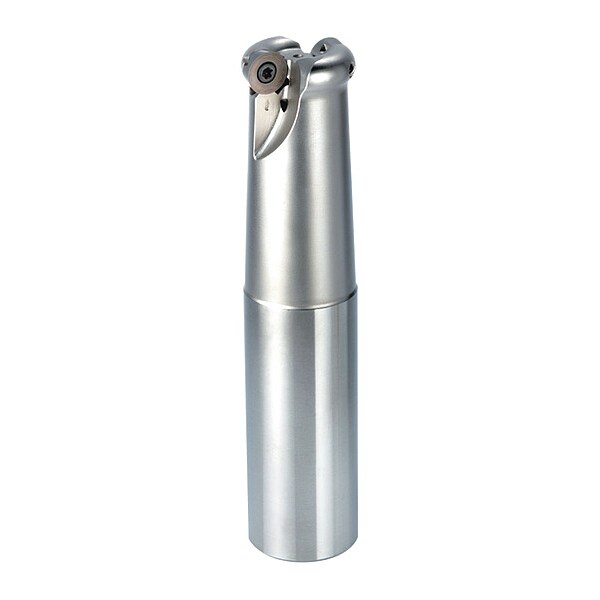

Indexable Profiling End Mill, HSK63A Series, 0.0550 in Depth of Cut

SKU
Brand Osg
Categories
Description Indexable Profiling End Mill, Max. Cutting Dia. 1.0000 in, Depth of Cut 0.0780 in, Shank Dia. 1.0000 in, Overall Length 7.8740 in, ANSI Code PRC10R100SA100-3L, Compatible Hardware 7808116, 7808207, Connection Size HSK63, Coolant Fed Coolant Through, Cutting Application Rough Milling
graingerSKU: , mscSKU: , zoro_no: G8295825, mongo_id: 65bbe66f3aaddbd5a902da4c

Web Price

$523.74 / each

Qty

Product Details

ANSI Code PRC10R100SA100-3L

Compatible Hardware 7808116, 7808207

Connection Size HSK63

Coolant Fed Coolant Through

Country of Origin (subject to change) Luxembourg

Cutting Application Rough Milling

Cutting Direction Right Hand

Depth of Cut 0.0780 in

Features End Mill and Face Mill Styles, Inch and Metric, Insert Rotation Notch, Large Body Relief, Secure Insert Clamping with Screws and Wide Chip Pockets

Head Dia. 1.0000

Head Projection Length Not Applicable

Insert Holding Type Clamping Screw

Insert Shape Round

Insert Size 10.00mm

Insert Style RPH_10

Max. Cutting Dia. 1.0000 in

Max. Speed 1,970 RPM

Min. Cutting Dia. 0.6060 in

Number of Coolant Holes 3

Number of Inserts 3

Overall Length 7.8740 in
