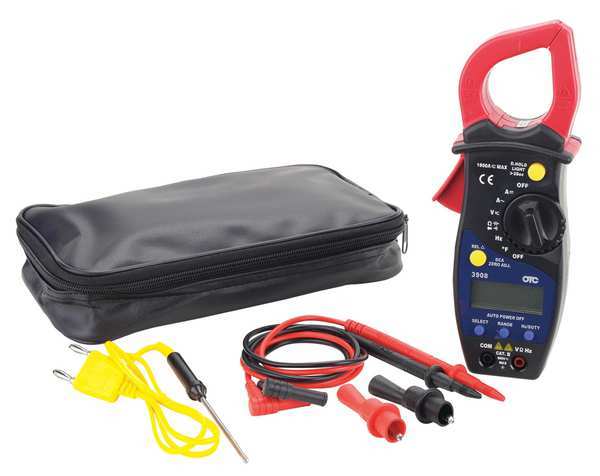

Clamp Meter Kit, Backlit LCD, 1,000 A, 1.3 in (33 mm) Jaw Capacity, Cat III 600V Safety Rating

SKU
Brand Otc
Categories
Description Clamp Meter Kit, Audible Continuity No, Safety Rating CAT III 600V, AC Response Calculation TRMS, Maximum AC Current Measurement 1,000 A, Maximum AC Voltage Measurement 600 V, Maximum DC Current Measurement 1,000 A, Maximum DC Voltage Measurement 600 V, Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Temperature (K), Jaw Opening 1.3 in, Jaw Style Clamp On, Calibration Certificate Included No
graingerSKU: 45NU74, mscSKU: , zoro_no: G2016257, mongo_id: 65bbe77c9a749db82273dcea

Web Price

$249.99 / each

Qty

Product Details

AC Current Accuracy +/-2.0% + 5 Digits

AC Response TRMS

AC Response Calculation TRMS

Audible Continuity No

Auto Power Off Yes

Auto Ranging Yes

Bar Graph No

Bar Graph Included No

Batteries Included Yes

Battery Size 9V

Battery Type 9V

Calibration Certificate Not Included

Calibration Certificate Included No

Capacitance 4, 100

Clamp Meter Jaw Style Clamp On

Country of Origin (subject to change) China

Counts 4,000

Data Hold Yes

Digital/Analog Digital

Diode Test Yes

Display Backlit LCD

Display Type Backlit LCD

Frequency Counter 1 Hz to 10 kHz

Includes Battery, Soft Carrying Case, Temperature Probe, Test Leads

Inrush No

Inrush Current Measurable No

Jaw Capacity 1.3 in (33 mm)

Jaw Opening 1.3 in

Jaw Style Clamp-Jaw

Manufacturers Warranty Length 1 yr

Max. AC Amps 1,000

Max. AC Volts 600 V

Max. Conductor Size 1.26 in (32.0mm)

Max. DC Amps 1,000

Max. DC Volts 600 V

Max. Ohms 40 megaohm

Maximum AC Current Measurement 1,000 A

Maximum AC Voltage Measurement 600 V

Maximum Capacitance Measurement 4 uF

Maximum Conductor Size 1.26 in (32.0mm)

Maximum DC Current Measurement 1,000 A

Maximum DC Voltage Measurement 600 V

Maximum Resistance Measurement 40 megaohm

Memory Data Hold

Midscale Resistance 400 ohm

Non-Contact Voltage Detector No

Operating Temp. 32 Degrees to 104 Degrees F

Package Quantity 1

Parameters Measured AC Current, AC Voltage, DC Current, DC Voltage, Temperature (K)

Peak Hold No

Safety Rating CAT III 600V

Special Features Automatic Negative Polarity Indication, Automatic Zero Adjustment, Low Battery Symbol, Over Range Indication, Relative Measurement Symbol

Standards IEC 1010, Over Voltage Category III, Pollution Degree 2

Temp. Range 32 Degrees to 104 Degrees F

Thermometer Type Type K Thermocouple
