Home / 10" x 3 ft. Pipe Insulation, 1-1/2" Wall

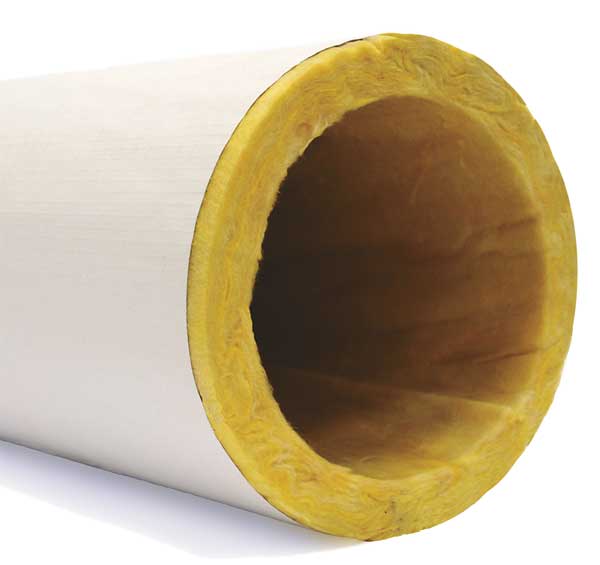

10" x 3 ft. Pipe Insulation, 1-1/2" Wall

SKU
Brand Owens Corning
Categories
Description Pipe Insulation, Insulation Material Fiberglass, Installation Style Slit with Adhesive and Flap, Inside Diameter 10 in, Wall Thickness 1 1/2 in, Overall Length 3 ft, Minimum Operating Temperature 0 Degrees F, Maximum Operating Temperature 1,000 Degrees F, Facing Material ASJ Facing, Color Tan, R Value 7.8, Form Tube, For Copper Tube Size Not Applicable, For Pipe Size 10 in, Flame Spread Index 25, Smoke Developed Index 50, Foam Cell Type Not Applicable, Plenum Rating Plenum Rated
graingerSKU: 4LFG2, mscSKU: , zoro_no: G0662855, mongo_id: 65bbe7273aaddbd5a90798ff

Web Price

$77.36 / each

Qty

Product Details

Approx. K Value 0.19

Approx. R Value 7.8

Clean Room Class Not Applicable

Color Tan

Country of Origin (subject to change) United States

Fits Pipe Size 10 in

Fits Pipe Size - Pipe Insulation 10 in

Flame Spread Index 25

Flexibility Not Applicable

Foam Cell Type Not Applicable

For Iron Pipe Size 10

Green Certification or Other Recognition GREENGUARD Certified

Green Environmental Attribute Total VOC Emissions Less Than or Equal To 0.5 mg/m and Formaldehyde Emissions Less Than or Equal To 0.05 ppm

Green Environmental Properties Formaldehyde Less Than or Equal to 0.05 ppm, Total VOC Less Than or Equal to 0.5 mg/cu m

Includes Pressure Sensitive Adhesive System

Installation Style Slit with Adhesive and Flap

Insulation Approx. K Value 0.19

Insulation Approx. R Value 7.8

Insulation Body Material Fiberglass

Insulation Length 3 ft

Insulation Nominal I.D. 10 in

Insulation Temp. Range 0 Degrees F to 1000 Degrees F

Insulation Type Hinged with Self Sealing Lap

Jacket Color White

K Value 0.19 BTU

Length 3 ft.

Material Fiberglass

Package Quantity 1

Pipe Insulation Item Pipe Insulation

Plenum Rating Plenum Rated

R Value 7.8

Sealing Method Adhesive Flap Seal

Smoke Developed Index 50

Standards UL 723, ASTM E84 or CAN/ULC S-102-M, GREENGUARD, ASTM C 547; ASTM C 1136, Types 1-IV; ASTM C 795, MIL-I-22344D, Nuclear Regulatory Commission Guide 1.36, Non-Metallic Thermal Insulation; MIL-I-24244C (Ships); U.S. Coast Guard Approval No. 164.009; CAN/CGSB-51.9 - Type I, Class 2; New York City MEA No. 344-83; NFPA 90A; ASTM C411; ASTM C302; ASTM E96 (Procedure A)

Temp. Range 0 Degrees to 1000 Degrees F

Tube Style Hinged

Wall Thickness 1 1/2 in

Wall Thickness - Insulation 1 1/2 in
