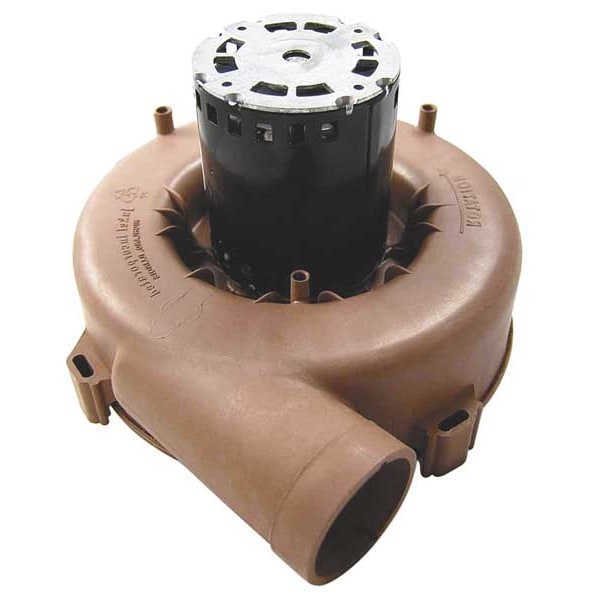

Draft Inducer, 115V, Metal, 7 in H.

SKU
Brand Packard
Categories
Description Induced Draft Furnace Blower, Application Furnaces, For Fuel Type Natural Gas, For Appliance Type Furnaces, Compatible with Brand Ametek, Armstrong, Fasco, Nidec, US Motors, Replacement For Manufacturer Model Number 117521, 117521-00, 40404-003, 40404-3, 7021-12439, N180, Nameplate Voltage 115V AC, Phase 1, Current 0.53 A, Frequency 60 Hz, Motor Type Permanent Split Capacitor, Motor Insulation Class B, Maximum Motor Speed 3,300 RPM, Maximum Inlet Air Temperature 40 Degrees C
graingerSKU: , mscSKU: , zoro_no: G1597285, mongo_id: 65bbe6903aaddbd5a903b62d

Web Price

$506.24 / each

Qty

Product Details

Agency Compliance CSA, UL

Amps 0.53A

Application Designed for Use in High Efficiency Gas-fired Residential Furnaces

Bearings Ball

Blower Type Induced Draft Furnace Blower

Class B

Compatible with Brand Ametek, Armstrong, Fasco, Nidec, US Motors

Construction Material Metal

Country of Origin (subject to change) Taiwan, Province of China

Current 0.53 A

Depth (In.) 11 1/4 in

Enclosure Open

Fits Brand Armstrong

For Appliance Type Furnaces

For Fuel Type Natural Gas

For Use With Furnace

For Use With Mfr. Model Number 117521-00, 40404-003

Frame 3.3

Frequency 60 Hz

Height (In.) 7 in

Housing Material Plastic

HP_ 1/30

Includes Motor Yes

Includes Mounting Hardware Yes

Maximum Inlet Air Temperature 40 Degrees C

Maximum Motor Horsepower 1/30 hp

Maximum Motor Speed 3,300 RPM

Maximum Static Pressure 1/8 in wc

Motor Insulation Class B

Motor Type Permanent Split Capacitor

Nameplate Voltage 115V AC

Number of Speeds 1

OEM Replacement Yes

Overall Depth 11 1/4 in

Overall Height 5 7/8 in

Overall Width 11 1/4 in

Overload Protection Automatic

Package Quantity 1

Phase 1

Remarks Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions

Replacement For Manufacturer Model Number 117521, 117521-00, 40404-003, 40404-3, 7021-12439, N180

Replaces Fasco 7021-12439, Armstrong 117521, Armstrong 117521-00, Armstrong 40404-003, Armstrong 40404-3, Ametek 117521, Ametek 117521-00

RPM 3300

Standards CSA Certified, UL Listed

Type Replacement

Vent Pipe Dia. (In.) 3.3

Voltage 115V

Width (In.) 11 1/4 in
