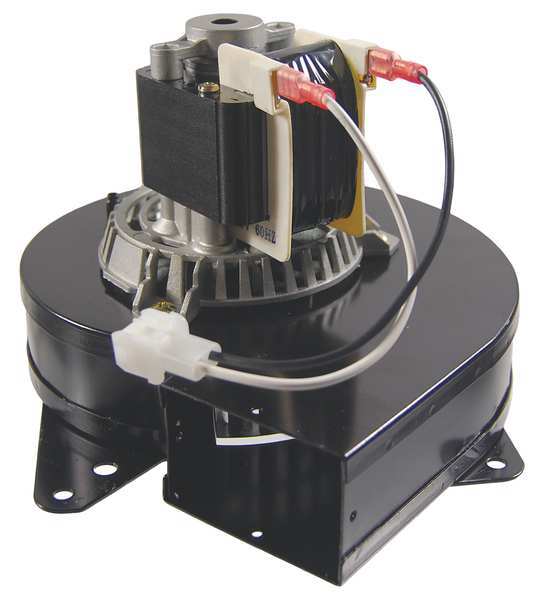

Name: Draft Inducer, 115V, Metal, 8 11/16 in H.
Brand: Packard
SKU: G8478382
Price: 134.99 USD
Availability: InStock

Home / Draft Inducer, 115V, Metal, 8 11/16 in H.

Draft Inducer, 115V, Metal, 8 11/16 in H.

SKU
Brand Packard
Categories
Description Induced Draft Furnace Blower, Application Furnaces, For Appliance Type Furnaces, Compatible with Brand AllTemp, Fasco, Lennox, Nidec, US Motors, Replacement For Manufacturer Model Number 101202-1, 10120201, 102359-01, 24W95, 31L5501, 7002-2975, 77-149-00, A200, FB-RFB495, lb-113219A, N200, Nameplate Voltage 115V AC, Phase 1, Current 1.2 A, Frequency 60 Hz, Motor Type Shaded Pole, Motor Insulation Class B, Maximum Motor Speed 3,000 RPM, Maximum Inlet Air Temperature 40 Degrees C

Web Price

$134.99 / each

Qty

Product Details

Agency Compliance UL

Amps 1.20A

Application Furnaces

Bearings Ball

Blower Type Induced Draft Furnace Blower

Class B

Compatible with Brand AllTemp, Fasco, Lennox, Nidec, US Motors

Construction Material Metal

Country of Origin (subject to change) Taiwan, Province of China

Current 1.2 A

Depth (In.) 5 1/4 in

Enclosure Open

Fits Brand Lennox

For Appliance Type Furnaces

For Use With Furnace

For Use With Mfr. Model Number 101202-01-01, 1023959-01, 24W95, 7002-2975, Lennox 31L5501

Frame C-Frame

Frequency 60 Hz

Height (In.) 8 11/16 in

Housing Material Metal

HP_ 1/30

Includes Blower, Gasket, Pressure Hose and Lead Extension with Plug

Includes Motor Yes

Includes Mounting Hardware Yes

Maximum Inlet Air Temperature 40 Degrees C

Maximum Motor Horsepower 1/30 hp

Maximum Motor Speed 3,000 RPM

Motor Insulation Class B

Motor Type Shaded Pole

Nameplate Voltage 115V AC

Number of Speeds 1

OEM Replacement Yes

Overall Depth 5 1/4 in

Overall Height 8 5/8 in

Overall Width 8 5/8 in

Overload Protection Automatic

Package Quantity 1

Phase 1

Power Consumption 138 W

Replacement For Manufacturer Model Number 101202-1, 10120201, 102359-01, 24W95, 31L5501, 7002-2975, 77-149-00, A200, FB-RFB495, lb-113219A, N200

Replaces Fasco 7002-2975, Fasco A200, AllTemp FB-RFB495, Lennox 101202-01, Lennox 101202-1, Lennox 10120201, Lennox 102359-01, Lennox 24W95, Lennox 31L5501, Lennox 7002-2975, Lennox 77-149-00, Lennox lb-113219A, Lennox lb113219a

RPM 3000

Standards UL Listed

Type Replacement

Voltage 115V

Watts 138 W

Width (In.) 8 11/16 in
