Home / Draft Inducer, 120v, Metal Housing, 7 in H.

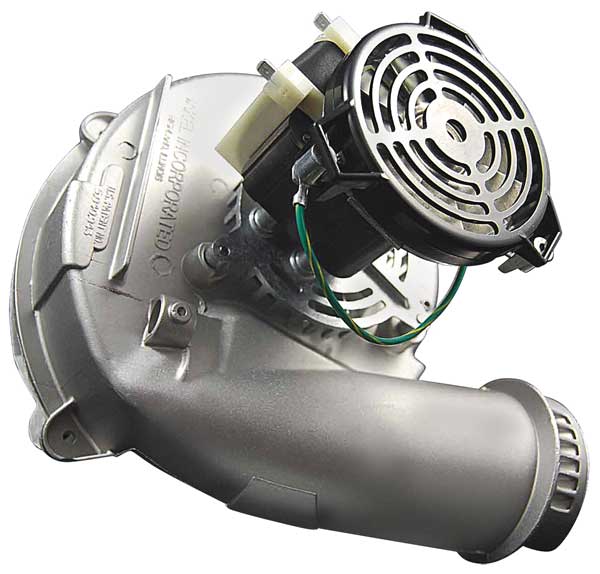

Draft Inducer, 120v, Metal Housing, 7 in H.

SKU
Brand Packard
Categories
Description Induced Draft Furnace Blower, Application Furnaces, For Fuel Type Natural Gas, For Appliance Type Furnaces, Compatible with Brand Ametek, Fasco, ICP, Nidec, Packard, Rheem, US Motors, Replacement For Manufacturer Model Number 117104-01, 117104-08, 117847-07, 1690042, 4MF46, 5C089, 66838, 70-22162-81, 70-22838-02, 70-22838-82, 70-24149-01, 70-24157-03, 70-24175-81, 7062-2615, 7062-4534, 7062-4702, A066, A066B, FB-RFB142, N066, Nameplate Voltage 120V AC, Phase 1, Current 1.7 A, Frequency 60 Hz

Web Price

$259.99 / each

Qty

Product Details

Agency Compliance UL, CSA

Amps 1.70A

Application Furnaces

Bearings Ball

Blower Type Induced Draft Furnace Blower

Class B

Compatible with Brand Ametek, Fasco, ICP, Nidec, Packard, Rheem, US Motors

Construction Material Metal Housing

Country of Origin (subject to change) Taiwan, Province of China

Current 1.7 A

Depth (In.) 11 1/4 in

Enclosure Open

Fits Brand Rheem

For Appliance Type Furnaces

For Fuel Type Natural Gas

For Use With Furnace

For Use With Mfr. Model Number 117104-01, 117847-07, 70-22838-82, 70-24157-03

Frame C-Frame

Frequency 60 Hz

Height (In.) 7 in

Housing Material Metal

HP_ 1/30

Includes Gasket

Includes Motor Yes

Maximum Inlet Air Temperature 40 Degrees C

Maximum Motor Horsepower 1/30 hp

Maximum Motor Speed 3,000 RPM

Motor Insulation Class B

Motor Type Shaded Pole

Nameplate Voltage 120V AC

Number of Speeds 1

OEM Replacement Yes

Overall Depth 11 1/4 in

Overall Height 9 in

Overall Width 11 1/4 in

Overload Protection Automatic

Package Quantity 1

Phase 1

Remarks Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions

Replacement For Manufacturer Model Number 117104-01, 117104-08, 117847-07, 1690042, 4MF46, 5C089, 66838, 70-22162-81, 70-22838-02, 70-22838-82, 70-24149-01, 70-24157-03, 70-24175-81, 7062-2615, 7062-4534, 7062-4702, A066, A066B, FB-RFB142, N066

Replaces Packard 66838, Fasco 7062-2615, Fasco 7062-4534, Fasco 7062-4702, Fasco A066, Fasco A066B, Rheem 117104-01, Rheem 117104-08, Rheem 117847-07, Rheem 4MF46, Rheem 5C089, Rheem 70-22162-81, Rheem 7062-4702, Rheem FB-RFB142, Rheem 70-22838-02, Rheem 70-22838-82, Rheem 70-24149-01, Rheem 70-24157-03, Rheem 70-24175-81, Rheem 7062-4534, ICP 1690042, Ametek 117104-01, Ametek 117104-08, Ametek 117847-07

RPM 3000

Standards CSA Certified, UL Listed

Type Replacement

Voltage 120v

Watts 28W

Width (In.) 11 1/4 in
