Home / Draft Inducer, 230V, Metal, 10 in H.

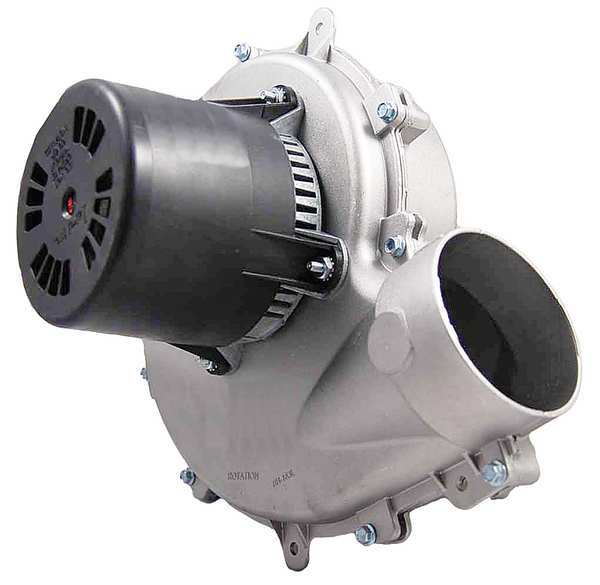

Draft Inducer, 230V, Metal, 10 in H.

SKU
Brand Packard
Categories
Description Induced Draft Furnace Blower, Application Furnaces, For Fuel Type Natural Gas, For Appliance Type Furnaces, Maximum Vent Pipe Diameter 2.7 in, Compatible with Brand Emerson, Fasco, Goodman, ICP, Nidec, US Motors, Replacement For Manufacturer Model Number 1010008, 1085571, 1085571P, 1110008, 119254-00, 3114, 7021-10048, 7021-10580, A169, N169, Nameplate Voltage 230V AC, Phase 1, Current 0.3 A, Frequency 60 Hz, Motor Type Permanent Split Capacitor, Motor Insulation Class B

Web Price

$174.99 / each

Qty

Product Details

Agency Compliance CSA, UL

Amps 0.30A

Application Natural Gas Furnace

Bearings Ball

Blower Type Induced Draft Furnace Blower

CFM @ 0.000-In. SP 94

CFM @ 0.500-In. SP 75

CFM @ 0.700-In. SP 68

CFM @ 1.000-In. SP 55

CFM @ 1.40-In. SP 40

Class B

Compatible with Brand Emerson, Fasco, Goodman, ICP, Nidec, US Motors

Construction Material Metal

Country of Origin (subject to change) Taiwan, Province of China

Current 0.3 A

Depth (In.) 6 3/8 in

Enclosure Open

Fits Brand ICP

For Appliance Type Furnaces

For Fuel Type Natural Gas

For Use With Furnace

For Use With Mfr. Model Number 1010008, 1085571, 1085571P, 1110008, 119254-00, 3114, 7021-10048, 7021-10580

Frame 3.3

Frequency 60 Hz

Height (In.) 10 in

HP_ 1/50 hp

Includes Capacitor

Includes Motor Yes

Includes Mounting Hardware Yes

Maximum Inlet Air Temperature 40 Degrees C

Maximum Motor Horsepower 1/50 hp

Maximum Motor Speed 3,000 RPM

Maximum Static Pressure 1/8 in wc

Maximum Vent Pipe Diameter 2.7 in

Motor Insulation Class B

Motor Type Permanent Split Capacitor

Nameplate Voltage 230V AC

Number of Speeds 1

OEM Replacement Yes

Overall Depth 6 1/4 in

Overall Height 10 in

Overall Width 8 3/4 in

Overload Protection Automatic

Package Quantity 1

Phase 1

Power Consumption 100 W

Remarks Product Used as Direct OEM Replacement Only. Any Other use Constitutes a Misapplication, Which Voids the Warranty and May Create Unsafe Conditions

Replacement For Manufacturer Model Number 1010008, 1085571, 1085571P, 1110008, 119254-00, 3114, 7021-10048, 7021-10580, A169, N169

Replaces Johnson Furnace 48HWC181, Johnson Furnace 66HWC241, Johnson Furnace 66HWC24A, Johnson Furnace 66HWC301, Johnson Furnace 8973C, Johnson Furnace 60HWC241, Johnson Furnace 60HWC24A, Johnson Furnace 60HWC301, Johnson Furnace 60HWC30A, Johnson Furnace 66HW, Johnson Furnace 66HWC181, Johnson Furnace 48HWC18A, Johnson Furnace 48HWC241, Johnson Furnace 48HWC24A, Johnson Furnace 60HW, Johnson Furnace 60HWC181, Johnson Furnace 60HWC18A, Magnetek 464, Universal 464, Universal 999, Universal DE3L038, Amana D69964-3, Amana D69964-4, Amana D6996403, Armstrong 322P859, Armstrong 35035B1, Armstrong 35HWC181, Armstrong 36HW, Armstrong 36HWC18A, Armstrong 36HWC241, Armstrong 66HWC301, Armstrong 7021-10264, Armstrong 60HWC30A, Armstrong 66HW, Armstrong 66HWC181, Armstrong 66HWC18A, Armstrong 66HWC241, Armstrong 66HWC24A, Armstrong 60HW, Armstrong 60HWC181, Armstrong 60HWC18A, Armstrong 60HWC241, Armstrong 60HWC24A, Armstrong 60HWC301,

RPM 3000

Standards CSA Certified, UL Listed

Type Replacement

Vent Pipe Dia. (In.) 3.3

Voltage 230V

Watts 100 W

Width (In.) 8 13/16 in
