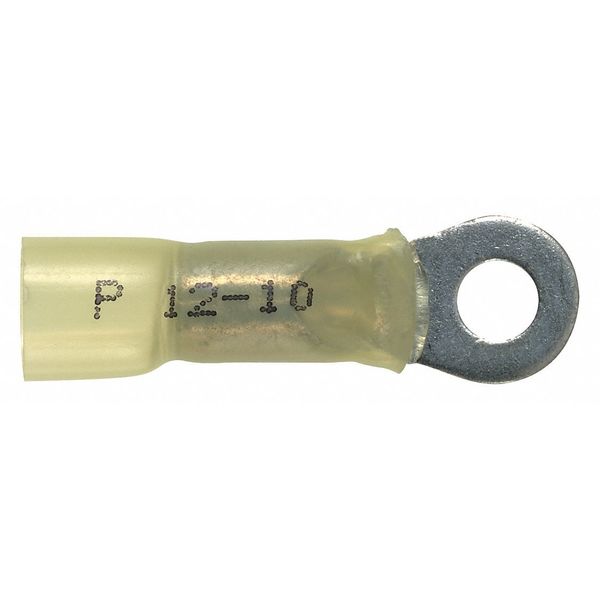

12-10 AWG Heat-Shrink Ring Terminal #10 Stud PK20

SKU
Brand Panduit
Categories
Description Ring Terminal, Insulation Color Yellow, Insulation Material Polyolefin, Maximum Operating Temperature 257 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 12 AWG, Maximum Wire Size 10 AWG, Termination Style Crimp, Tongue Width 0.37 in, Contact Finish Tin, Contact Material Copper, UL 94 Flammability Rating HB, V-2, Standards CSA C22.2 No. 65, UL 486A, UL 486B, Barrel Length 0.25 in, Barrel Style Brazed, Compatible Grainger Part Number 377D97, Compatible Manufacturer Model Number CT-310
graingerSKU: 39AZ42, mscSKU: , zoro_no: G0287467, mongo_id: 65bbe94f22d7a989a994a1de

Web Price

$47.36 / each

Qty

Product Details

Barrel Length 0.25 in

Barrel Length (In.) 0.25

Barrel Length (mm) 6.35

Barrel Style Brazed

Barrel Type Standard

Base Material Copper

Color Code Yellow

Compatible Manufacturer Model Number CT-310

Connection Material Copper

Connection Type Crimp

Connector Details 1 x Ring Terminal

Connector Plating Tin

Connector Type Ring Terminal

Contact Finish Tin

Contact Material Copper

Country of Origin (subject to change) Mexico

Environmentally Friendly Yes

Features Flame Retardant

Finish/Coating Tin-Plated

Flammability Rating UL94-HB

For Use With CT-310

For Wire Size 10 AWG, 12 AWG

For Wire Sizes 12 AWG to 10 AWG

Green Environmental Attribute Does Not Contain PVC

Insulation Heat Shrink (Polyolefin)

Insulation Color Yellow

Insulation Dia 0.24 in

Insulation Material Polyolefin

Insulation Type Heat Shrink

Length 1.2

Max. Temp. 230 Degrees F

Max. Voltage 600 V

Maximum Copper Conductor Size (AWG) #10

Maximum Metric Conductor Size (mmÃÂ²) 6

Maximum Operating Temperature 257 Degrees F

Maximum Operating Temperature (ÃÂ°C) 125

Maximum Operating Temperature (ÃÂ°F) 257

Maximum Voltage 600 V

Maximum Voltage (V) 600

Maximum Wire Insulation Diameter (In.) 0.24

Maximum Wire Insulation Diameter (mm) 6.1

Maximum Wire Size 10 AWG

Maximum Wire Size (AWG) #10

Minimum Copper Conductor Size (AWG) #12

Minimum Metric Conductor Size (mmÃÂ²) 4

Minimum Operating Temperature 230 Degrees F

Minimum Wire Size 12 AWG

Minimum Wire Size (AWG) #12

Overall Length 1.2 in

Overall Length (In.) 1.2

Overall Length (mm) 30.48

Overall Width (In.) 0.37

Overall Width (mm) 9.4

Package Quantity 20

Packaging Type Bag

Product Color Yellow

Product Material Copper

Product Name Terminal Connector

Product Type Terminal Connector

Ring Width Ranges 0.26 - 0.50 inches

Seam Brazed

Seam Style Brazed

Seam Type Brazed

Special Features Heat Shrink Installation is Completed with a Standard Heat Gun, Heat Shrink Sleeving Forms a Protective Barrier to Provide Environmentally Sealed Terminations Ideal for High Moisture Applications, Ring Tongue Design Assures a Secure Connection in High Vibration Applications, Shrink Temperature 300 Degrees F (150 Degrees C)

Standards CSA C22.2 No. 65, UL 486A, UL 486B

Standards Met cULus Listed 587H E52164, CSA Certified LR31212

Strip Length 3/8 in

Stud Hole Size (In.) #10

Stud Hole Size (mm) 5

Stud Size #10

Sub Brand Pan-TermÃÂ®

Terminal Connection Crimp

Terminal Shape Ring Terminal

Terminal Type Ring Tongue

Termination Crimp Termination with Heat Shrink

Termination Style Crimp
