Home / 14.2" L Miniature Cable Tie NAT PK 1000

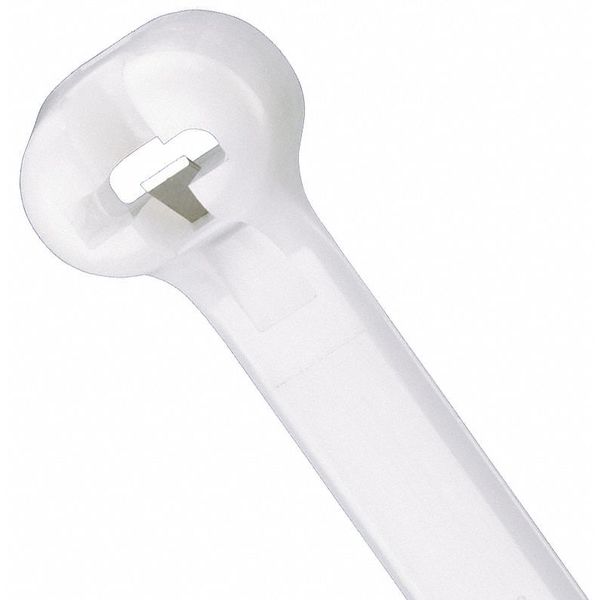

14.2" L Miniature Cable Tie NAT PK 1000

SKU
Brand Panduit
Categories
Description Cable Tie, Standard, Actual Length 14.2 in, Width 0.09 in, Nominal Length 14 1/2 in, Locking Style Stainless Steel Barb, Color Natural, Basic Material - Cable Tie Nylon, Tensile Strength 18 lb, Halogen-Free, Low-Smoke, Plenum Rated, Miniature, Nominal Max. Bundle Dia. 4 in, Temp. Range -76 Degrees to 185 Degrees F, Number of Straps 1, Flame Retardant No, Metal Detectable No, Outdoor Use No, Plenum Rated Yes, UL Type 2, Thickness 0.05 in, Max. Bundle Dia. 4 in, Material Nylon 6/6
graingerSKU: 2CMW7, mscSKU: 61651840, zoro_no: G0565661, mongo_id: 65bbe81a9a749db8227738ad

Web Price

$167.49 / each

Qty

Product Details

Actual Length 14.2 in

Application General Purpose

Approximate Length 14

Approximate Length - Cable Tie 14

Basic Material Nylon

Basic Material - Cable Tie Nylon

Body Thickness (In.) 0.046

Body Thickness (mm) 1.2

Body Width (In.) 0.095

Body Width (mm) 2.4

Cable Manager Type Cable Tie

Cable Tie Duty Miniature

Cable Tie Properties Halogen-Free, Low-Smoke, Plenum Rated

Cable Tie Style Standard

Color natural

Color - Cable Tie Natural

Country of Origin (subject to change) Costa Rica

Depth 14.20

Design Standard

Design - Cable Tie Standard

Environment Plenum

Flame Retardant No

For Use With GTS-E, GS2B-E, STS2

Indoor/Outdoor Indoor

Length 14.2

Length - Cable Tie 14.20

Locking Style Stainless Steel Barb

Material Nylon 6/6

Max. Bundle Dia. 4.00

Max. Temp. Rating 185 Degrees F

Maximum Bundle Diameter (In.) 4

Maximum Bundle Diameter (mm) 101.6

Maximum Operating Temperature (ÃÂ°C) 85

Maximum Operating Temperature (ÃÂ°F) 185

Metal Detectable No

Min. Temp. Rating -76 Degrees F

Minimum Bundle Diameter (In.) 0.06

Minimum Bundle Diameter (mm) 1.5

Minimum Installation Temperature (ÃÂ°C) -20

Minimum Installation Temperature (ÃÂ°F) -4

Minimum Loop Tensile Strength (lb) 18

Minimum Loop Tensile Strength (N) 80

Minimum Operating Temperature (ÃÂ°C) -60

Minimum Operating Temperature (ÃÂ°F) -76

Nominal Length 14 1/2 in

Nominal Max. Bundle Dia. 4 in

Number of Straps 1

Outdoor Use No

Overall Length (In.) 14.2

Overall Length (mm) 361

Package Quantity 1000

Plenum Rated Yes

Product Color Natural

Product Line Dome-Top Barb Ty

Product Material Nylon

Product Name Dome-Top Barb Ty Cable Tie

Product Type Cable Tying

Recommended Tool 376V35, 52ZJ96, 62PX63

Standards UL 62275 (Type 2, 21), CSA, CE, RoHS, Plenum AH-2

Standards Met UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Compliant

Sub Brand Dome-TopÃÂ®

Temp. Range -76 Degrees to 185 Degrees F

Tensile Strength 18 lb.

Tensile Strength - Cable Tie 18 lb.

Thickness 0.04

Tool Code E

UL Type 2

Width 0.09

Width - Cable Tie 0.09
