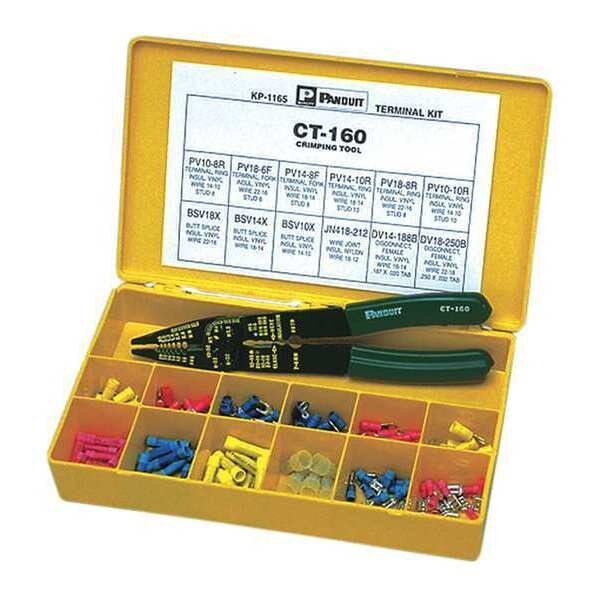

22-10 AWG Wire Termination Kit w/Tool 147 Piece

SKU
Brand Panduit
Categories
Description Wire Terminal Kit, For Conductor Material Copper, Insulation Material None, Number of Pieces 147, Tools Included Crimping Tool, Manufacture Model Numbers Included BSV10X, BSV14X, BSV18X, CT-160, DV14-188B, DV18-250B, JN418-212, PV10-10R, PV10-8R, PV14-10R, PV14-8F, PV18-6F, PV18-8R, Barrel Style Internally Bevelled, Connector Assortment Type Crimp Terminals, For Conductor Type Solid Copper, Stranded Copper
graingerSKU: 39CA62, mscSKU: , zoro_no: G0159041, mongo_id: 65bbe81522d7a989a98d77d5

Web Price

$198.74 / each

Qty

Product Details

Application Ideal for maintenance and construction wiring

Barrel Style Internally Bevelled

Connection Type Crimp

Connector Assortment Type Crimp Terminals

Country of Origin (subject to change) United States

Description/Special Features Plastic Box, Wire In Maintenance and Construction Applications

For Conductor Material Copper

For Conductor Type Solid Copper, Stranded Copper

Includes (10) BSV10X Vinyl Butt Splices, (10) BSV14X, (10) BSV18X, (10) DV18-250B and (10) DV14-188B Vinyl Disconnects, (10) PV10-10R Vinyl Ring Terminals, (10) PV10-8R, (18) PV14-10R, (18) PV18-6F and (18) PV14-8F Vinyl Fork Terminals, (18) PV18-8R, (5) JN418-212 Nylon Wire Joints, CT-160 Crimping Tool, Plastic Box

Insulation Color Assortment

Insulation Material None

Kit Type Terminal

Manufacture Model Numbers Included BSV10X, BSV14X, BSV18X, CT-160, DV14-188B, DV18-250B, JN418-212, PV10-10R, PV10-8R, PV14-10R, PV14-8F, PV18-6F, PV18-8R

Maximum Wire Size (AWG) #10

Minimum Wire Size (AWG) #22

Note KP-1165Y replaces KP-1165

Number of Pieces 147

Number of Sizes 12

Overall Length 6-3/4 in

Overall Length (In.) 6.75

Overall Length (mm) 172

Overall Width (In.) 11

Overall Width (mm) 279.4

Package Quantity 1

Product Type Terminal Kit

Sizes Included BSV10X, BSV14X, BSV18X, DV14 to 188B, DV18 to 250B, JN418 to 212, PV10 to 10R, PV10 to 8R, PV14 to 10R, PV14 to 8F, PV18 to 6F, PV18 to 8R

Sub Brand Pan-TermÃÂ®

Terminal Connection Crimp

Terminal Type Butt Splice Connectors, Closed-End Crimp Connectors, Female Quick Disconnects, Fork Terminals, Ring Terminals

Tools Included Crimping Tool

Wire Range 22 to 10 AWG

Wire Type Solid Copper, Stranded Copper
