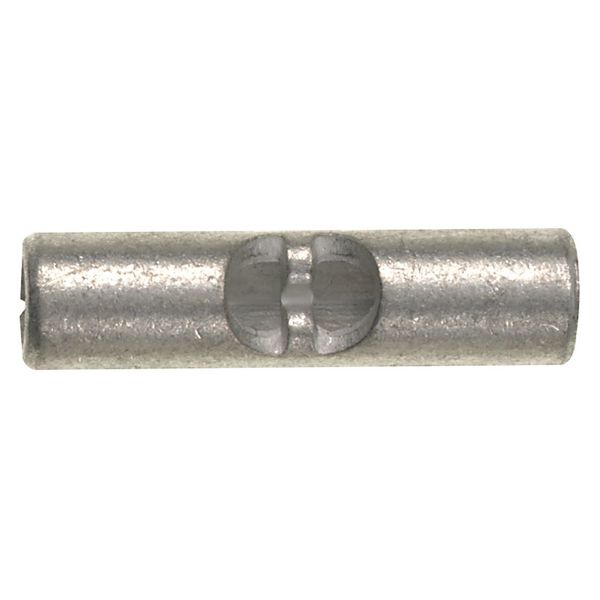

Butt Splice Connector, 22 to 18 AWG, PK100

Butt Splice Connector, 22 to 18 AWG, PK100

  • Panduit
  • Splice Connector, Connection Type Crimp, Insulation Material None, Insulation Color Bare, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 2,000 V, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Standards CSA C22.2 No. 65, UL 486C, Termination Style Crimp, Contact Finish Tin, Contact Material Copper, Overall Length 0.62 in, Seam Style Brazed, Barrel Inside Diameter 0.076 in, Barrel Outside Diameter 0.14 in, Body Finish Tin Plated, Body Material Copper

    graingerSKU: 39AY17, mscSKU: , zoro_no: G0159349, mongo_id: 65bbe7439a749db82272bd5c

Web Price
$58.24 / each
Qty

Product Details

0.076 in
0.076 in
0.076 in
0.14 in
Standard
Copper
Tin Plated
Copper
Copper
CT-100A, CT-1570, CT-200, CT-2500, CT-600-A
Tin-Plated Copper
Crimp
Butt Splice
Tin
Copper
#22 - #18
Mexico
150
302
Yes
Tin-Plated
18 AWG, 20 AWG, 22 AWG
Stranded
Bare
None
Non-Insulated
302 Degrees F
2,000 V
#18
#18
1
302 Degrees F
2,000 V
2
18 AWG
#22
#22
0.5
22 AWG
2
0.62 in
0.62
15.7
0.14 in
0.14
3.6
100
Bulk
Copper
Tin
BS18-C
Butt Splice
Butt Splice
Brazed
Brazed
Internal Wire Stop Assures Proper Length of Insertion into Terminal Barrel
CSA C22.2 No. 65, UL 486C
UL 486C, CSA C22.2 No.65
1/4 in
Pan-Term®
Crimp
UL 486C
105
302
0.1
22 to 18 AWG
22 AWG - 18 AWG
9/32
7.1
