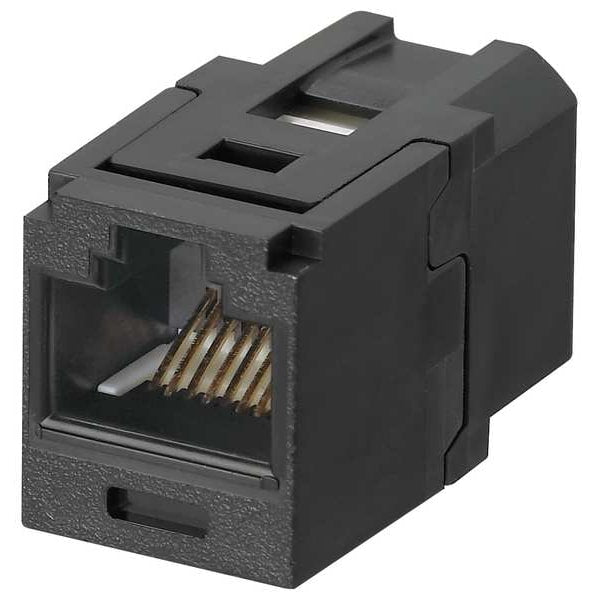

Coupler Module, RJ45, Cat6, Black

SKU
Brand Panduit
Categories
Description Modular Jack, Termination Type Coupler, Compatible Cable Performance Category 6, Color Black, RCA Insulator Color Black, Number of Ports 1, Overall Depth 1 1/8 in, Overall Height 3/4 in, Overall Width 5/8 in, Resistance Properties Flame/Fire Resistant, Standards ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 and Type 4, ISO 11801, RoHS Compliant, UL 1863, UL 2043
graingerSKU: 5ZVY6, mscSKU: , zoro_no: G1975416, mongo_id: 65bbe8729a749db822792000

Web Price

$31.99 / each

Qty

Product Details

Body Material Polycarbonate

Cable Type CAT6

Certifications & Standards ANSI/TIA/EIA-568-C.2

ISO 11801

Color Black

Compatible Cable Performance Category 6

Connector Details 1 x RJ-45 Network Female

Connector Type RJ-45 Network - Female

Contact Material Plated Phosphor Bronze

Country of Origin (subject to change) United States

Environmentally Friendly Yes

For Use With Mini-Com Faceplate and Panels

Material Plastic

Maximum Operating Temperature (ÃÂ°C) 75

Maximum Operating Temperature (ÃÂ°F) 167

Maximum Storage Temperature (ÃÂ°C) 75

Maximum Storage Temperature (ÃÂ°F) 167

Minimum Operating Temperature (ÃÂ°C) -10

Minimum Operating Temperature (ÃÂ°F) 14

Minimum Storage Temperature (ÃÂ°C) -40

Minimum Storage Temperature (ÃÂ°F) -40

Module Type Mini-ComÃÂ®

Number of Ports 1

Overall Depth 1 1/8 in

Overall Depth (In.) 1.09

Overall Depth (mm) 27.7

Overall Height 3/4 in

Overall Height (In.) 0.71

Overall Height (mm) 18

Overall Length (In.) 1.09

Overall Length (mm) 27.7

Overall Width 5/8 in

Overall Width (In.) 0.62

Overall Width (mm) 15.7

Package Quantity 1

Performance Level Category 6

Product Color Black

Product Line Mini-Com

Product Name Mini-Com Cat.6 UTP Coupler Module

Product Type Coupler Module

RCA Insulator Color Black

Resistance Properties Flame/Fire Resistant

Series Mini Com

Shield Type Unshielded (UTP)

Standards ANSI/TIA-568.2-D, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Type 3 and Type 4, ISO 11801, RoHS Compliant, UL 1863, UL 2043

Standards Met Exceeds Channel Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category with up to 2 couplers per channel, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.

Sub Brand Pan-NetÃÂ®

Termination Style Coupler

Termination Type Coupler

Wiring Scheme T568A/T568B
