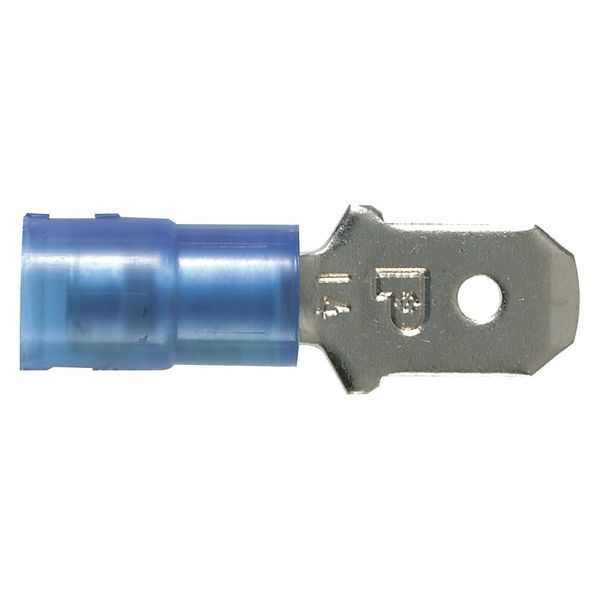

Male Disconnect, Blue, 16-14AWG, PK100

SKU
Brand Panduit
Categories
Description Male Disconnect, Contact Finish Nickel, Contact Material Copper, Disconnect Style Tab, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, UL 94 Flammability Rating HB, RoHS Compliant Yes, Seam Style Sleeved Barrel
graingerSKU: 39AY54, mscSKU: , zoro_no: G0159175, mongo_id: 65bbe5d73aaddbd5a9fedb2d

Web Price

$111.49 / each

Qty

Product Details

Barrel Inside Dia. 0.09 in

Barrel Inside Diameter 0.09 in

Barrel Style Grip Sleeve

Barrel Type Standard

Base Material Copper

Color Code Blue

Connection Material Nickel-Plated Copper

Connection Type Crimp

Connector Details 1 x Quick Disconnect

Connector Type Quick Disconnect

Contact Finish Nickel

Contact Material Copper

Contact Plating Nickel

Country of Origin (subject to change) Mexico

Disconnect Style Tab

Disconnect Type Male Tab Disconnect

Environmentally Friendly Yes

Features Flame Retardant

Finish/Coating Nickel-Plated

Flammability Rating UL94-HB

For Use With CT-1550, CT-1551, CT-2300/ST (CD-550), CT-2500/L (CT-2550CH), UP14ZLW (CD-550)

For Wire Size 14 AWG, 16 AWG

Insulation Partial

Insulation Color Blue

Insulation Coverage Partial Coverage

Insulation Diameter (In.) 0.16

Insulation Diameter (mm) 4.1

Insulation Material Nylon

Insulation Type Nylon

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Copper Conductor Size (AWG) #14

Maximum Metric Conductor Size (mmÃÂ²) 2.5

Maximum Operating Temperature 221 Degrees F

Maximum Operating Temperature (ÃÂ°C) 105

Maximum Operating Temperature (ÃÂ°F) 221

Maximum Voltage 600 V

Maximum Voltage (kV) 0.6

Maximum Voltage (V) 600

Maximum Wire Insulation Diameter (In.) 0.16

Maximum Wire Insulation Diameter (mm) 4.1

Maximum Wire Size 14 AWG

Maximum Wire Size (AWG) #14

Minimum Copper Conductor Size (AWG) #16

Minimum Metric Conductor Size (mmÃÂ²) 1.5

Minimum Operating Temperature -60 Degrees F

Minimum Wire Size 16 AWG

Minimum Wire Size (AWG) #16

Overall Length 0.9 in

Overall Length (In.) 0.9

Overall Length (mm) 22.9

Overall Thickness (In.) 0.03

Overall Thickness (mm) 0.8

Overall Width (In.) 0.25

Overall Width (mm) 6.4

Package Quantity 100

Packaging Type Bottle

Product Color Blue

Product Material Copper

Product Name Terminal Connector

Product Type Disconnect

RoHS Compliant Yes

Seam Sleeved Barrel

Seam Style Sleeved Barrel

Special Features Internal Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Male Tab can be Inserted and Removed From the Female Disconnect Without the Use of Tools for Lower Installed Cost, Metal Insulation Grip Sleeve Crimps to Wire Insulation, Providing Protection to the Crimp Joint During High Vibration Applications

Standards C22.2 No.153, CSA Certified LR31212, UL 310, UL Listed 20H3 E78522

Standards Met UL 310 Listed, UL Listed 20H3 E78522; CSA Certified LR31212, C22.2 No.153

Strip Length 1/4 in

Sub Brand Pan-TermÃÂ®

Tab Size 0.032 in x 0.250 in

Tab Size (In.) 0.250 x 0.032

Tab Size (mm) 6.3 x 0.8

Tab Thickness 0.032 in

Tab Width 0.25 in

Terminal Type Tab

Terminal Types Male Tab

Termination Style Crimp
