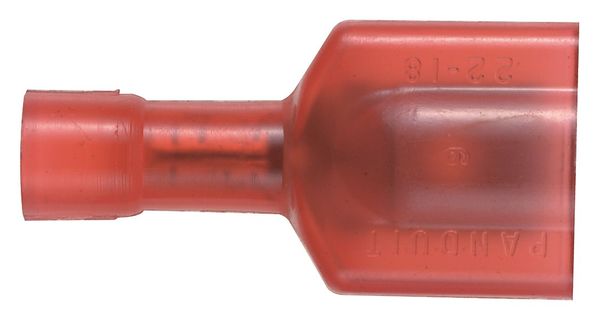

Male Disconnect, Red, 22-18AWG, PK1000

SKU
Brand Panduit
Categories
Description Male Disconnect, Contact Finish Nickel, Contact Material Brass, Disconnect Style Tab, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, UL 94 Flammability Rating HB, RoHS Compliant Yes, Seam Style Butted, Standards CSA 22.2 No.153, UL 310
graingerSKU: 39AY59, mscSKU: , zoro_no: G0287966, mongo_id: 65bbe63f3aaddbd5a9018e85

Web Price

$719.99 / each

Qty

Product Details

Barrel Inside Dia. 0.062 in

Barrel Inside Diameter 0.062 in

Barrel Style Funnel Entry

Connection Material Nickel-Plated Brass

Connection Type Crimp

Contact Finish Nickel

Contact Material Brass

Country of Origin (subject to change) Mexico

Disconnect Style Tab

For Wire Size 18 AWG, 20 AWG, 22 AWG

Insulation Full

Insulation Color Red

Insulation Coverage Full Coverage

Insulation Material Nylon

Insulation Type Nylon

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Operating Temperature 221 Degrees F

Maximum Voltage 600 V

Maximum Wire Size 18 AWG

Minimum Operating Temperature -60 Degrees F

Minimum Wire Size 22 AWG

Overall Length 0.9 in

Package Quantity 1000

RoHS Compliant Yes

Seam Butted

Seam Style Butted

Special Features Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Fully Insulated Design Provides Protection From Electrical Shorts, The Internal Wire Stop Assures Proper Wire Insertion Length for a Higher Quality Connection

Standards CSA 22.2 No.153, UL 310

Strip Length 5/16 in

Tab Size 0.032 in x 0.250 in

Tab Thickness 0.032 in

Tab Width 0.25 in

Terminal Type Tab

Terminal Types Male Tab

Termination Style Crimp

UL 94 Flammability Rating HB

Wire Range 22 to 18 AWG

Wire Size Range 22 AWG - 18 AWG
