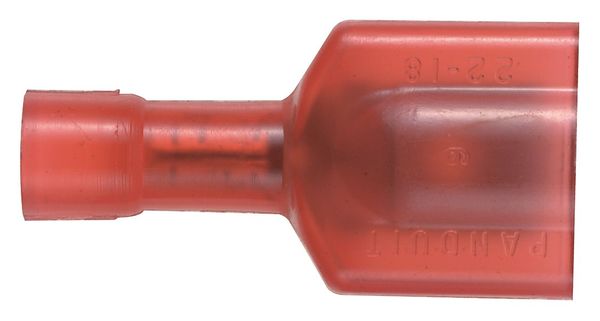

Male Disconnect, Red, 22-18AWG, PK50

SKU
Brand Panduit
Categories
Description Male Disconnect, Contact Finish Nickel, Contact Material Brass, Disconnect Style Tab, Insulation Color Red, Insulation Coverage Full Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 22 AWG, Maximum Wire Size 18 AWG, Maximum Voltage 600 V, Tab Thickness 0.032 in, Tab Width 0.25 in, Terminal Type Tab, Termination Style Crimp, UL 94 Flammability Rating HB, RoHS Compliant Yes, Seam Style Butted, Standards CSA 22.2 No.153, UL 310
graingerSKU: 39AY58, mscSKU: , zoro_no: G0059879, mongo_id: 65bbe76f9a749db82273a281

Web Price

$59.99 / each

Qty

Product Details

Barrel Inside Dia. 0.062 in

Barrel Inside Diameter 0.062 in

Barrel Style Funnel Entry

Barrel Type Funnel

Base Material Brass

Color Code Red

Connection Material Nickel-Plated Brass

Connection Type Crimp

Connector Details 1 x Quick Disconnect

Connector Type Quick Disconnect

Contact Finish Nickel

Contact Material Brass

Contact Plating Nickel

Country of Origin (subject to change) Mexico

Disconnect Style Tab

Disconnect Type Male Tab Disconnect

Environmentally Friendly Yes

Features Flame Retardant

Finish/Coating Nickel-Plated

Flammability Rating UL94-HB

For Use With CT-1525, CT-2300/ST (CD-525), CT-2500/L (CT-2525CH), UP14ZLW (CD-525)

For Wire Size 18 AWG, 20 AWG, 22 AWG

Insulation Full

Insulation Color Red

Insulation Coverage Full Coverage

Insulation Material Nylon

Insulation Type Nylon

Max. Temp. 221 Degrees F

Max. Voltage 600 V

Maximum Copper Conductor Size (AWG) #18

Maximum Metric Conductor Size (mmÃÂ²) 1

Maximum Operating Temperature 221 Degrees F

Maximum Operating Temperature (ÃÂ°C) 105

Maximum Operating Temperature (ÃÂ°F) 221

Maximum Voltage 600 V

Maximum Voltage (kV) 0.6

Maximum Voltage (V) 600

Maximum Wire Insulation Diameter (In.) 0.133

Maximum Wire Insulation Diameter (mm) 3.38

Maximum Wire Size 18 AWG

Maximum Wire Size (AWG) #18

Minimum Metric Conductor Size (mmÃÂ²) 0.5

Minimum Operating Temperature -60 Degrees F

Minimum Wire Size 22 AWG

Minimum Wire Size (AWG) #22

Note DNF18-250FIM-L replaces DNF18-250FIM-C

Overall Height (In.) 0.27

Overall Height (mm) 6.9

Overall Length 0.9 in

Overall Length (In.) 0.9

Overall Length (mm) 22.9

Overall Width (In.) 0.42

Overall Width (mm) 10.7

Package Quantity 50

Packaging Type Bottle

Product Color Red

Product Material Brass

Product Name Terminal Connector

Product Type Disconnect

RoHS Compliant Yes

Seam Butted

Seam Style Butted

Special Features Barrel Serrations Assure Good Wire Contact and Maximum Tensile Strength, Disconnect can be Inserted and Removed From the Male Tab Without the Use of Tools for Lower Installed Cost, Fully Insulated Design Provides Protection From Electrical Shorts, The Internal Wire Stop Assures Proper Wire Insertion Length for a Higher Quality Connection

Standards CSA 22.2 No.153, UL 310

Standards Met UL 310, CSA 22.2 No.153

Strip Length 5/16 in

Sub Brand Pan-TermÃÂ®

Tab Size 0.032 in x 0.250 in

Tab Size (In.) 0.250 x 0.032

Tab Size (mm) 6.3 x 0.8

Tab Thickness 0.032 in

Tab Width 0.25 in

Terminal Type Tab

Terminal Types Male Tab

Termination Style Crimp
