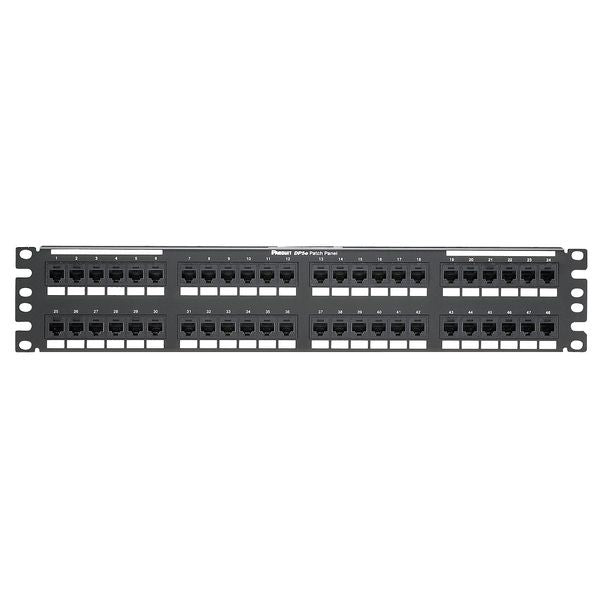

Patch Panel, Cat 6, Rack Mt, 48 Port

SKU
Brand Panduit
Categories
Description Patch Panel, Compatible Cable Performance Category 6, Includes Adhesive Label, Material Steel, Number of Ports 48, Panel Shape Flat, Panel Type 110, Rack Units 2, Overall Depth 1 1/8 in, Overall Height 3 1/2 in, Overall Width 19 in, Standards ANSI/TIA-568-C.2, ANSI/TIA-968-A, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt type 3 and 4, ISO 11801 Class E, RoHS Compliant, UL Listed, T568 Standard T568A, T568B
graingerSKU: 5ZVX8, mscSKU: , zoro_no: G0688283, mongo_id: 65bbe99f22d7a989a9968adb

Web Price

$918.74 / each

Qty

Product Details

Category Type 6

Color Black

Compatible Cable Performance Category 6

Compatible Rack Unit 2U

Connectors per Panel 48

Country of Origin (subject to change) Mexico

Form Factor Rack-mountable

Identification Type Adhesive Label

Includes Adhesive Label

Material Steel

Maximum Operating Temperature (ÃÂ°C) 65

Maximum Operating Temperature (ÃÂ°F) 149

Minimum Operating Temperature (ÃÂ°C) -10

Minimum Operating Temperature (ÃÂ°F) -14

Mounting Style Rack Mount

Note DP48688TGY replaces DP48688TG

Number of Network (RJ-45) Ports 48

Number of Ports 48

Number of Rack Units 2

Number of RJ-11 Ports 48

Overall Depth 1 1/8 in

Overall Depth (In.) 1.17

Overall Depth (mm) 29.7

Overall Height 3 1/2 in

Overall Height (In.) 3.47

Overall Height (mm) 88.1

Overall Length (In.) 1.17

Overall Length (mm) 29.7

Overall Width 19 in

Overall Width (In.) 19

Overall Width (mm) 482.6

Package Quantity 1

Panel Shape Flat

Panel Style Flat

Panel Type 110

Patch Panel Style Flat

Performance Level Category 6

Product Model DP48688TG

Product Name DP48688TG 48-Port Network Patch Panel

Product Type Network Patch Panel

Rack Units 2

Standards ANSI/TIA-568-C.2, ANSI/TIA-968-A, IEC 60603-7, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt type 3 and 4, ISO 11801 Class E, RoHS Compliant, UL Listed

Standards Met Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6 and ISO 11801 Class E standards at swept frequencies 1 to 250 MHz. Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7, Supports IEEE 802.3af, 802.3at, and IEEE 802.3bt type 3 and 4 for PoE applications up to 100 W, UL 1863 approved, RoHS Compliant

Sub Brand Pan-NetÃÂ®

T568 Standard T568A, T568B

Termination Style Punchdown

Total Number of Ports 48

Wiring Scheme T568A/T568B
