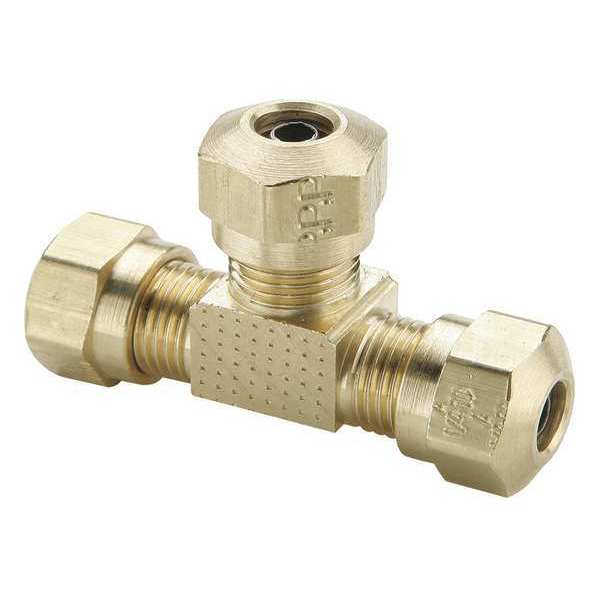

Union Tee, 3/8 In

SKU
Brand Parker
Categories
Description Union Tee, Application Air, Potable Water, Fitting Side A Connection Type Compression, Fitting Side B Connection Type Compression, Fitting Side C Connection Type Compression, Fitting Material Brass, Fitting Side A Tube Outer Diameter 3/8 in, Fitting Side B Tube Outer Diameter 3/8 in, Fitting Side C Tube Outer Diameter 3/8 in, Thread Size A 17/32-24, Maximum Operating Pressure 150 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 2 15/32 in, Specific Fitting Shape Tee
graingerSKU: 11G344, mscSKU: 87872396, zoro_no: G4173811, mongo_id: 65bbe7503aaddbd5a908908e

Web Price

$12.36 / each

Qty

Product Details

Application Air, Potable Water

Basic Material Brass

Basic Pipe Fitting Material Metal

Basic Pipe Fitting Shape Tee

Compatible Tube Material Nylon, Stainless Steel

Compliance SAE J246, SAE J1131, DOTFMVSS 571.106

Compression Thread Size 17/32-24

Connection Tube x Tube x Tube

Connection Type Compression x Compression x Compression

Country of Origin (subject to change) United States

End Connection Type Compression

Fitting Body Material Brass

Fitting Material Brass

Fitting Shape Tee

Fitting Side A Connection Type Compression

Fitting Side A Tube Outer Diameter 3/8 in

Fitting Side B Connection Type Compression

Fitting Side B Tube Outer Diameter 3/8 in

Fitting Side C Connection Type Compression

Fitting Side C Tube Outer Diameter 3/8 in

For Tube OD 3/8 in x 3/8 in

For Tube Outside Diameter 3/8 in

For Use With Parker Parflex Division J844 Type A & B, 1120 Nylon Air Brake Tubing and 1320 Quantum Elastomeric Air Brake Tubing; All Brass Air Brake Fittings; Electroless Nickel Plated Bodies can be Used with Bio-Diesel; Air Brake Systems on Semi-Trucks, Trailers, Buses, Mobile Equipment and Farm Implements; Air Tanks, Air Ride, Sliders, Tire Inflation, Primary & Secondary Air Lines and Cab Controls

Includes Pre-Applied Thread Sealant Yes

Industry Type Heavy Duty Truck; Trailer; Mobile

Length 2.48 in

Material Brass

Max. Pressure 150 psi (10 Bar)

Max. Temp. 200 Degrees F

Maximum Operating Pressure 150 psi

Maximum Operating Temperature 200 Degrees F

Minimum Operating Temperature 40 Degrees F

Overall Length 2 15/32 in

Package Quantity 1

Pipe Fitting Connection Type Tube x Tube x Tube

Pressure (PSI) 150

Special Features D.O.T. Compression Style Fittings for Repairing Truck and Trailer Air Brake Lines; Ribbed Sleeve for Compression and Positive Grip; Stainless Steel Tube Support; Pre-Applied Thread Sealant

Specific Fitting Shape Tee

Specific Pipe Fitting Shape Tee Union

Standards DOT FMVSS 571.106, SAE J1131, SAE J246

System of Measurement Inch

Temp. Range -40 Degrees to 200 Degrees F

Thread Sealant Type Vibra-Seal(R) 516

Thread Size 17/32-24

Thread Size A 17/32-24

Threading Size 17/32-24

Tube Fitting Material Nylon

Tube Outside Dia. 3/8

Tube Size 3/8 in
