Home / Flexible Hose Assy, 1/2 x 3/4 In, 24 In L

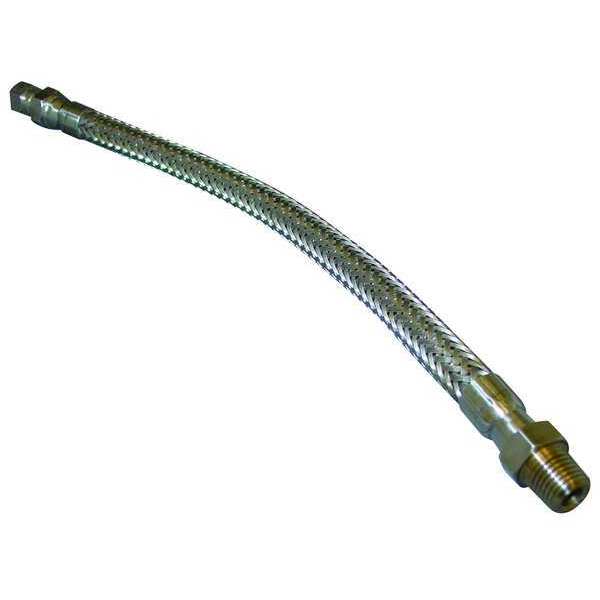

Flexible Hose Assy, 1/2 x 3/4 In, 24 In L

SKU
Brand Penflex
Categories
Description Flexible Metal Hose Assembly, Hose Inside Dia. 1/2 in, Hose Length 24 in, Hose Tube Material 321 Stainless Steel, Hose Cover Material 304 Stainless Steel, Max. Working Pressure @ 70 F 1,075 psi, Temp. Range 1500 Degrees F, Standards ASME B31.1 & B31.3, ASME BPV SEC. IX, ASTM A240, ASTM A580, COMPLIES TO PED 97/23/EC CATEGORIES I/II/III/V, ISO 10380 TYPE 2 COMPLIANT, Dynamic Min. Bend Radius (In.) 6 in, Hose Fitting A Material Carbon Steel, Hose Fitting B Material Carbon Steel
graingerSKU: 4DXX1, mscSKU: , zoro_no: G3266523, mongo_id: 65bbe82b22d7a989a98df2bb

Web Price

$176.24 / each

Qty

Product Details

Braid Material 304 Stainless Steel

Compatible Chemicals Air, Ammonium Hydroxide, Antifreeze (Coolant), Automatic Transmission Fluid, Biodiesel, Brake Fluid, Diesel Fuel, E85, Ethyl (Ethanol), Ethyl Acetate, Formaldehyde, Fresh Water, Fuel Oil, Gasoline, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, LP Gas, Methyl (Methanol), Motor Oil, Naphtha, Paint, Potassium Hydroxide (50%)

Country of Origin (subject to change) Canada

Dia. (In.) 1/2

Dynamic Min. Bend Radius (In.) 6 in

Fitting Material Carbon Steel x Carbon Steel

Fitting Size 3/4 in x 1/2 in

Fitting Type MNPT x F JIC

FJIC Size (In) 3/4-16

For Media Type Ethanol, Methanol, Antifreeze, Gasoline, Kerosene, Diesel Fuel, Hydraulic Fluid, Ethyl Acetate, Biodiesel, Formaldehyde, Ammonium Hydroxide, Potassium Hydroxide (50%), Water, Motor Oil, E85, Automatic Transmission Fluid, Brake Fluid, Naphtha, Paint, Air, Fuel Oil, LP Gas

Hose Cover Material 304 Stainless Steel

Hose Fitting A Material Carbon Steel

Hose Fitting A Size 3/4 in

Hose Fitting A Type FJIC

Hose Fitting B Material Carbon Steel

Hose Fitting B Size 1/2 in

Hose Fitting B Type MNPT

Hose Fittings Carbon Steel 3/4-16 FJIC x Carbon Steel 1/2 in MNPT

Hose Inside Dia. 1/2 in

Hose Length 24 in

Hose Material 321 Stainless Steel

Hose Tube Material 321 Stainless Steel

Length 24

Length (In.) 24

Max. Temp. (F) 1500

Max. Working Pressure (PSI) 350

Max. Working Pressure @ 70 F 1,075 psi

Not Recommended Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Chromic Acid 10%, Chromic Acid 30%, Chromic Acid 5%, Chromic Acid 50%, Citric Acid 50%, Formic Acid, Hydrochloric/Muriatic Acid (100%), Hydrochloric/Muriatic Acid (20%), Hydrochloric/Muriatic Acid (37%), Hydrofluoric Acid (20%), Hydrofluoric Acid (75%), Hydrofluoric Acid 100%, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Nitric Acid (50% Solution), Nitric Acid (Concentrated Solution), Phosphoric Acid (40% Solution), Salt Water, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Sulfuric Acid (10% - 75%), Sulfuric Acid (75% - 100%), Sulfuric Acid (to 10%), Trichlorethylene (50%)

Package Quantity 1

Pipe Size (In.) 1/2-14

Standards ISO 10380 TYPE 2 COMPLIANT; ASME B31.1 & B31.3; ASTM A240, ASTM A580, ASME BPV SEC. IX; COMPLIES TO PED 97/23/EC CATEGORIES I, II, III, V

Static Min. Bend Radius (In.) 1.5

Temp. Range 1500 Degrees F
