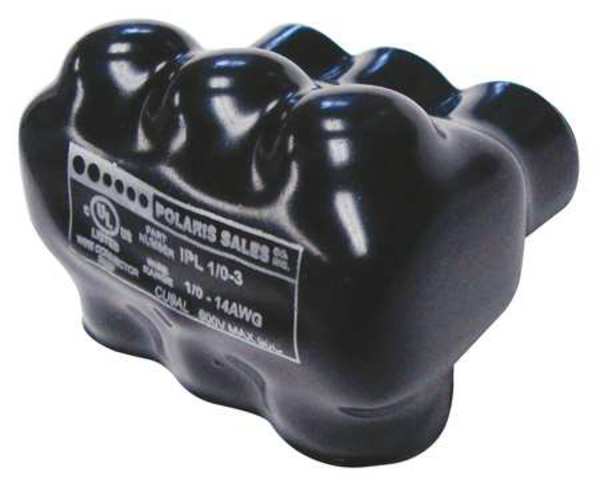

Insulated Multitap Connector, 1.62 In. W

SKU
Brand Polaris
Categories
Description Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, RoHS Compliant Yes, Standards cULus, UL 486B, Compatible with Product Type Copper and Aluminum Cables
graingerSKU: 14V972, mscSKU: 42556944, zoro_no: G4119254, mongo_id: 65bbe94f22d7a989a994a1ee

Web Price

$42.74 / each

Product Details

Al Conductor Max Amp 135

Assortment Black UV Coated Pre-Insulated Connectors

Body Material Aluminum

Certifications cULus

Color Black

Compatible with Product Type Copper and Aluminum Cables

Conductor Al Size Range 1/0 AWG Ã¢ÂÂ 12 AWG

Conductor Cu Size Range 1/0 AWG Ã¢ÂÂ 14 AWG

Conductor Type Copper, Aluminum

Conductors Count 3

Connector Type Single-Sided Entry

Country of Origin (subject to change) United States

Cu Conductor Max Amp 170

Direct Burial Rated No

Env Temp Cold Temperature rated to -45C

Finish Plastisol

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 1/0 AWG

For Stranded Copper Wire Size - Minimum 14 AWG

For Wire Size 1 AWG, 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG

Head Style Hex

Hex Size 3/16 in

Hex Wrench Size 3/16

Insulation Material Plastisol

Length 2.27 in

Length (Straight Wireway) 2.27 in

Max Torque 80

Max. Conductor Size 1/0 AWG

Max. Voltage 600V AC/DC

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 14 AWG

Minimum Operating Temperature -49 Degrees F

No. of Ports 3

Number of Ports 3

Overall Length 2.24 in

Overall Width 1.5 in

Package Quantity 1

RoHS Compliant Yes

Screw Material Aluminum

Special Features Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, UV Resistant, Will Not Support Combustion, Wire Entry Ports on One Side Only

Standards cULus, UL 486B

Strip Length 1 1/16 in

Stud Size 3/16 in

Tap Shape L

Temp Rating 90C, AL9CU

Torque 180 in-lb

Ul File No E186991

Ul Standard UL 486A/B

Width 1.62 in

Wire Cable Class Class B, Class C

Wire Size Range 14 AWG - 1/0 AWG
