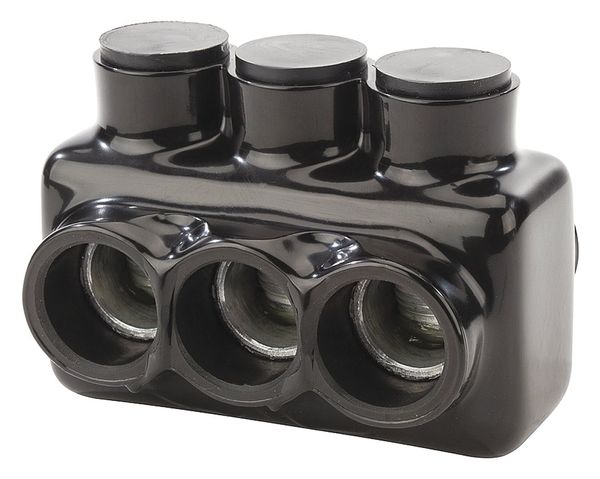

Insulated Multitap Connector, 3.41 In. L

SKU
Brand Polaris
Categories
Description Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 600 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 167 Degrees F, Maximum Voltage 600 V, Number of Ports 3, RoHS Compliant Yes, Standards cULus, UL 486A, Compatible with Product Type Copper and Aluminum Cables
graingerSKU: 34UH95, mscSKU: , zoro_no: G9109861, mongo_id: 65bbe99922d7a989a9966f04

Web Price

$147.49 / each

Product Details

Al Conductor Max Amp 385

Assortment Black UV Coated Pre-Insulated Connectors

Body Material Aluminum

Certifications cULus

Color Black

Compatible with Product Type Copper and Aluminum Cables

Conductor Al Size Range 600 MCM-6 AWG

Conductor Cu Size Range 600 MCM-6 AWG

Conductor Type Copper, Aluminum

Conductors Count 3

Connector Type Double-Sided Entry

Country of Origin (subject to change) United States

Cu Conductor Max Amp 475

Direct Burial Rated No

Env Temp Cold Temperature rated to -45C

Finish Plastisol

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 600 kcmil

For Stranded Copper Wire Size - Minimum 6 AWG

For Wire Size 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4 AWG, 4/0 AWG, 400 kcmil, 500 kcmil, 6 AWG, 600 kcmil

Head Style Hex

Hex Size 5/16 in

Hex Wrench Size 5/16

Insulation Material Plastisol

Length 3.41 in

Length (Straight Wireway) 3.41 in

Max Torque 550

Max. Conductor Size 600 kcmil

Max. Voltage 600V AC/DC

Maximum Operating Temperature 167 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 6 AWG

Minimum Operating Temperature -49 Degrees F

No. of Ports 3

Number of Ports 3

Overall Length 4.55 in

Overall Width 2.96 in

Package Quantity 1

RoHS Compliant Yes

Screw Finish Tin Plated

Screw Material Steel

Special Features Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, Supplied With Removable Plugs to Close the Entry Port Not Being Utilized, UV Resistant, Will Not Support Combustion, Wire Entry Ports on Both Sides of the Connector Allow for Access From Either Side

Standards cULus, UL 486A

Strip Length 2 in

Stud Size 5/16 in

Tap Shape Z

Temp Rating 90C, AL9CU

Torque 550 in-lb

Ul File No E186991

Ul Standard UL 486A/B

Width 4.55 in

Wire Cable Class Class B, Class C

Wire Size Range 6 AWG - 600 kcmil
