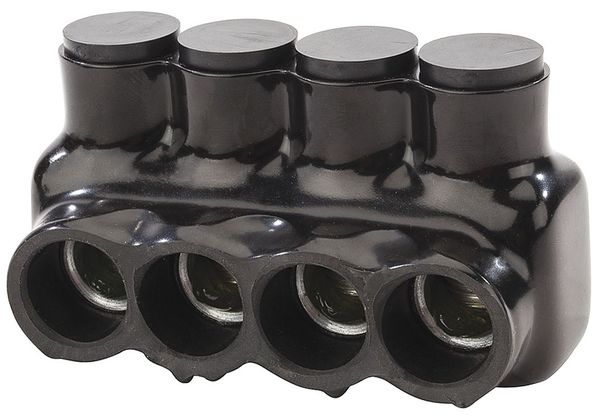

Insulated Multitap Connector, 3.80 In. L

SKU
Brand Polaris
Categories
Description Insulated Multitap Connector, Body Material Aluminum, Color Black, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 250 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 4, RoHS Compliant Yes, Standards cULus, UL 486B, Compatible with Product Type Copper and Aluminum Cables
graingerSKU: null, mscSKU: null, zoro_no: G9109807, mongo_id: 65bbe6a53aaddbd5a9043d0e

Web Price

$51.49 / each

Product Details

Al Conductor Max Amp 410

Application Wire Termination

Assortment Black UV Coated Pre-Insulated Connectors

Body Material Aluminum

Color Black

Compatible with Product Type Copper and Aluminum Cables

Conductor Type Copper, Aluminum

Conductors Count 4

Connector Type Single-Sided Entry

Country of Origin (subject to change) United States

Cu Conductor Max Amp 527

Dimensions L=3.8 - W=2.03 - H=2.18

Direct Burial Rated No

Env Temp Cold Temperature rated to -45C

Environmental Conditions 90 C

Finish Plastisol

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 250 kcmil

For Stranded Copper Wire Size - Minimum 6 AWG

For Wire Size 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 4 AWG, 4/0 AWG, 6 AWG

Head Style Hex

Hex Size 5/16 in

Hex Wrench Size 5/16

Insulation Material Plastisol

Length 3.8 in

Length (Straight Wireway) 3.8 in

Material Plastisol

Max Torque 360

Max. Conductor Size 250 kcmil

Max. Voltage 600V AC/DC

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 6 AWG

Minimum Operating Temperature -49 Degrees F

No. of Ports 4

Number Of Conductors 4

Number of Ports 4

Overall Length 3.8 in

Overall Width 2.03 in

Package Quantity 1

RoHS Compliant Yes

Screw Material Aluminum

Special Features Abrasion and Chemical Resistant, Eliminates the Need for Cover and Taping, Insulated With High-Dielectric Strength Plastisol, Molded for Precise Fit and Supplied With Removable Access Plugs Over the Hex Screws, UV Resistant, Will Not Support Combustion, Wire Entry Ports on One Side Only

Standard cULus

Standards cULus, UL 486B

Strip Length 1 3/8 in

Stud Size 5/16 in

Tap Shape L

Temp Rating 90C, AL9CU

Temperature Rating 90ÃÂ° C

Torque 360 in-lb

Type Single-Sided Entry

Ul File No E186991

Ul Standard UL 486A/B

Voltage Rating 600 V
