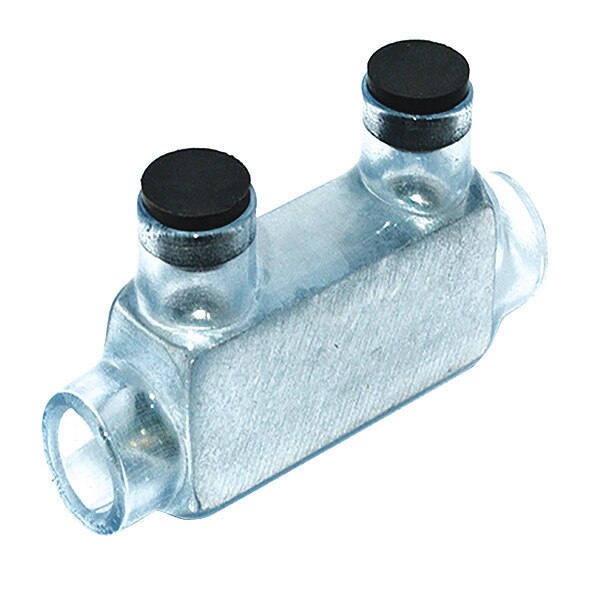

Polaris Multi-Tap Connector, Insulated

SKU
Brand Polaris
Categories
Description Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 14 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Head Style Hex, Hex Size 3/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, RoHS Compliant Yes, Standards cULus, UL 486A, Compatible with Product Type Copper and Aluminum Conductors
graingerSKU: 199XU0, mscSKU: , zoro_no: G5805416, mongo_id: 65bbe7c49a749db822756df4

Web Price

$45.61 / each

Qty

Product Details

Al Conductor Max Amp 135

Application Splice

Assortment Clear Coated Pre-Insulated Connectors

Body Material Aluminum

Certifications cULus

Color Clear

Compatible with Product Type Copper and Aluminum Conductors

Conductor Al Size Range 1/0 AWG Ã¢ÂÂ 12 AWG

Conductor Cu Size Range 1/0 AWG Ã¢ÂÂ 14 AWG

Conductor Type Copper, Aluminum

Conductors Count 2

Connector Type In Line

Country of Origin (subject to change) United States

Cu Conductor Max Amp 170

Direct Burial Rated No

Env Temp Cold Temperature rated to -45C

Finish Plastisol

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 1/0 AWG

For Stranded Copper Wire Size - Minimum 14 AWG

For Wire Size 1 AWG, 1/0 AWG, 10 AWG, 12 AWG, 14 AWG, 2 AWG, 4 AWG, 6 AWG, 8 AWG

Head Style Hex

Hex Size 3/16 in

Hex Wrench Size 3/16

Insulation Material Plastisol

Length 3.25 in

Length (Straight Wireway) 3.25 in

Max Torque 80

Max. Conductor Size 1/0 AWG

Max. Voltage 600V AC/DC

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 14 AWG

Minimum Operating Temperature -49 Degrees F

No. of Ports 2

Number of Ports 2

Overall Length 3.25 in

Overall Width 0.9 in

Package Quantity 1

RoHS Compliant Yes

Screw Material Steel

Special Features Clear Design Allows for Optimal Conductor Placement and a More Secure Connection, Pre-Filled With Oxide Inhibitor to Prevent Corrosion and Provide a Low-Contact Resistance Connection, Removable Plugs Ensure Secure Entry Port Closure While Preventing Debris From Entering Connector, Smooth Exterior Finish and Rounded Corners Provide a More Comfortable Grip for Maximum Torque

Standards cULus, UL 486A

Strip Length 1 1/16 in

Stud Size 3/16 in

Temp Rating 90C, AL9CU

Torque 180 in-lb

Ul File No E186991

Ul Standard UL 486A/B

Width 0.9 in

Wire Cable Class Class B, Class C

Wire Size Range 14 AWG - 1/0 AWG
