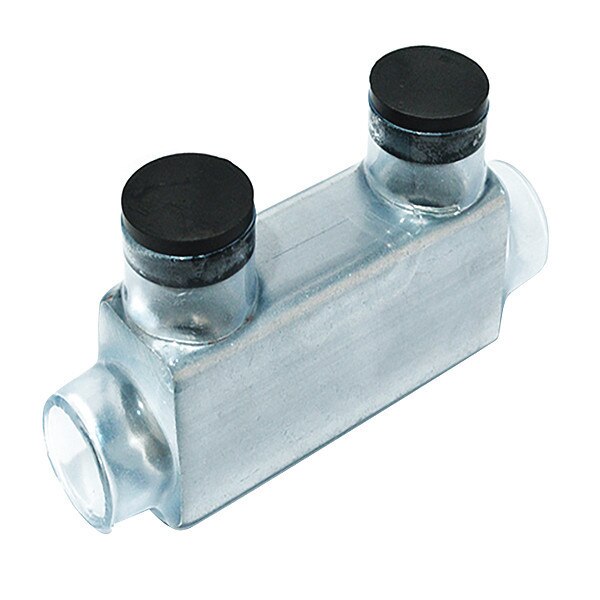

Polaris Multi-Tap Connector, Insulated

SKU
Brand Polaris
Categories
Description Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, RoHS Compliant Yes, Standards cULus, UL 486A, Compatible with Product Type Copper and Aluminum Conductors
graingerSKU: 199XU3, mscSKU: , zoro_no: G5805486, mongo_id: 65bbe7ee9a749db82276526f

Web Price

$95.36 / each

Qty

Product Details

Al Conductor Max Amp 350

Application Splice

Assortment Clear Coated Pre-Insulated Connectors

Body Material Aluminum

Certifications cULus

Color Clear

Compatible with Product Type Copper and Aluminum Conductors

Conductor Al Size Range 500 MCM Ã¢ÂÂ 4 AWG

Conductor Cu Size Range 500 MCM Ã¢ÂÂ 4 AWG

Conductor Type Copper, Aluminum

Conductors Count 2

Connector Type In Line

Country of Origin (subject to change) United States

Cu Conductor Max Amp 430

Direct Burial Rated No

Env Temp Cold Temperature rated to -45C

Finish Plastisol

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 500 kcmil

For Stranded Copper Wire Size - Minimum 4 AWG

For Wire Size 1 AWG, 1/0 AWG, 2 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 350 kcmil, 4 AWG, 4/0 AWG, 400 kcmil, 500 kcmil

Head Style Hex

Hex Size 5/16 in

Hex Wrench Size 5/16

Insulation Material Plastisol

Length 4.62 in

Length (Straight Wireway) 4.62 in

Max Torque 450

Max. Conductor Size 500 kcmil

Max. Voltage 600V AC/DC

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 4 AWG

Minimum Operating Temperature -49 Degrees F

No. of Ports 2

Number of Ports 2

Overall Length 4.62 in

Overall Width 1.62 in

Package Quantity 1

RoHS Compliant Yes

Screw Material Aluminum

Special Features Clear Design Allows for Optimal Conductor Placement and a More Secure Connection, Pre-Filled With Oxide Inhibitor to Prevent Corrosion and Provide a Low-Contact Resistance Connection, Removable Plugs Ensure Secure Entry Port Closure While Preventing Debris From Entering Connector, Smooth Exterior Finish and Rounded Corners Provide a More Comfortable Grip for Maximum Torque

Standards cULus, UL 486A

Strip Length 1 3/4 in

Stud Size 5/16 in

Temp Rating 90C, AL9CU

Torque 450 in-lb

Ul File No E186991

Ul Standard UL 486A/B

Width 1.62 in

Wire Cable Class Class B, Class C

Wire Size Range 4 AWG - 500 kcmil
