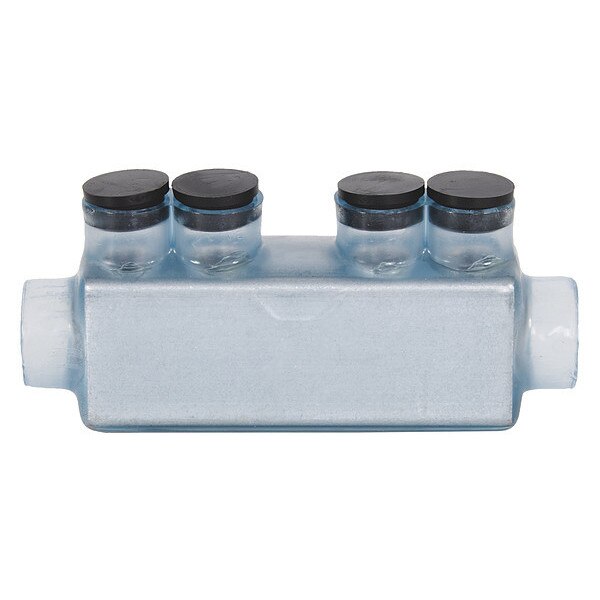

Polaris Multi-Tap Connector, Insulated

SKU
Brand Polaris
Categories
Description Insulated Multitap Connector, Body Material Aluminum, Color Clear, Finish Plastisol, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 750 kcmil, Head Style Hex, Hex Size 5/16 in, Insulation Material Plastisol, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 2, RoHS Compliant Yes, Standards cULus, UL 486A, Compatible with Product Type Copper and Aluminum Conductors
graingerSKU: 199XU5, mscSKU: , zoro_no: G5805425, mongo_id: 65bbe77b3aaddbd5a9099bfa

Web Price

$213.74 / each

Qty

Minimum order: 2

Product Details

Al Conductor Max Amp 435

Application Wire Termination; Dry Locations

Assortment Clear Coated Pre-Insulated Connectors

Body Material Aluminum

Certifications cULus

Color Clear

Compatible with Product Type Copper and Aluminum Conductors

Conductor Al Size Range 750 MCM Ã¢ÂÂ 1/0 AWG

Conductor Cu Size Range 750 MCM Ã¢ÂÂ 1/0 AWG

Conductor Type Copper, Aluminum

Conductors Count 2

Connector Type In Line

Country of Origin (subject to change) United States

Cu Conductor Max Amp 535

Direct Burial Rated No

Env Temp Cold Temperature rated to -45C

Finish Plastisol

For Conductor Material Aluminum, Copper

For Stranded Copper Wire Size - Maximum 750 kcmil

For Stranded Copper Wire Size - Minimum 1/0 AWG

For Wire Size 1/0 AWG, 2/0 AWG, 250 kcmil, 3/0 AWG, 300 kcmil, 4/0 AWG, 400 kcmil, 500 kcmil, 600 kcmil, 750 kcmil

Head Style Hex

Hex Size 5/16 in

Hex Wrench Size 3/8

Insulation Material Plastisol

Length 7.25 in

Length (Straight Wireway) 7.25 in

Material Plastisol

Max Torque 550

Max. Conductor Size 750 kcmil

Max. Single Wire Size 750 kcmil

Max. Temp. 90ÃÂ°C

Max. Voltage 600V AC/DC

Maximum Operating Temperature 194 Degrees F

Maximum Voltage 600 V

Min. Conductor Size 1/0 AWG

Min. Single Wire Size 1/0 AWG

Minimum Operating Temperature -49 Degrees F

No. of Ports 2

Number of Ports 2

Overall Length 7.25 in

Overall Width 1.75 in

Package Quantity 1

RoHS Compliant Yes

Screw Material Aluminum

Special Features Clear Design Allows for Optimal Conductor Placement and a More Secure Connection, Pre-Filled With Oxide Inhibitor to Prevent Corrosion and Provide a Low-Contact Resistance Connection, Removable Plugs Ensure Secure Entry Port Closure While Preventing Debris From Entering Connector, Smooth Exterior Finish and Rounded Corners Provide a More Comfortable Grip for Maximum Torque

Standards cULus, UL 486A

Strip Length 2 in

Stud Size 5/16 in

Temp Rating 90C, AL9CU

Torque 550 in-lb

Ul File No E186991

Ul Standard UL 486A/B

Width 1.75 in

Wire Cable Class Class B, Class C

Wire Size Range 1/0 AWG - 750 kcmil
