Home / 22-16 AWG Non-Insulated Pin Terminal PK100

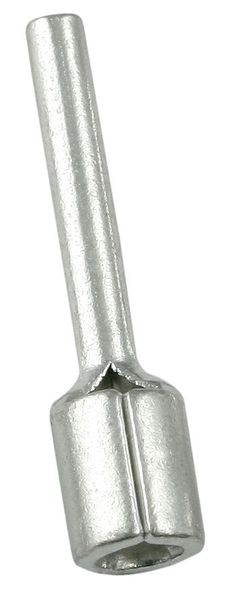

22-16 AWG Non-Insulated Pin Terminal PK100

22-16 AWG Non-Insulated Pin Terminal PK100

  • Power First
  • Pin Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Bare, Insulation Coverage None, Insulation Material None, Maximum Operating Temperature 302 Degrees F, Maximum Voltage 600 V, Minimum Wire Size 22 AWG, Maximum Wire Size 16 AWG, Pin Diameter 0.075 in, Pin Length 0.472 in, RoHS Compliant Yes, Seam Style Brazed, Standards UL/cUL Listed E96029, Termination Style Crimp, Barrel Inside Diameter 0.067 in, Barrel Length 0.189 in, Barrel Outside Diameter 0.134 in

    graingerSKU: 5UGP6, mscSKU: , zoro_no: G2974605, mongo_id: 65bbe7439a749db82272bd79

Web Price
$12.36 / each
Qty

Product Details

0.067 in
0.067 in
0.189 in
0.134 in
Crimp
Insulated Stranded Copper Cable
Copper
Crimp
Tin
Copper
Taiwan, Province of China
18 A
Stranded or Solid Copper
16 AWG, 18 AWG, 20 AWG, 22 AWG
Bare
None
None
Non-Insulated
302 Degrees F
600 V
302 Degrees F
600 V
16 AWG
22 AWG
0.661 in
100
0.075 in
0.472 in
Yes
Butted
Brazed
Suitable for Limited Space Applications
UL/cUL Listed E96029
Crimp
Pin
Crimp
22 to 16 AWG
22 AWG - 16 AWG
