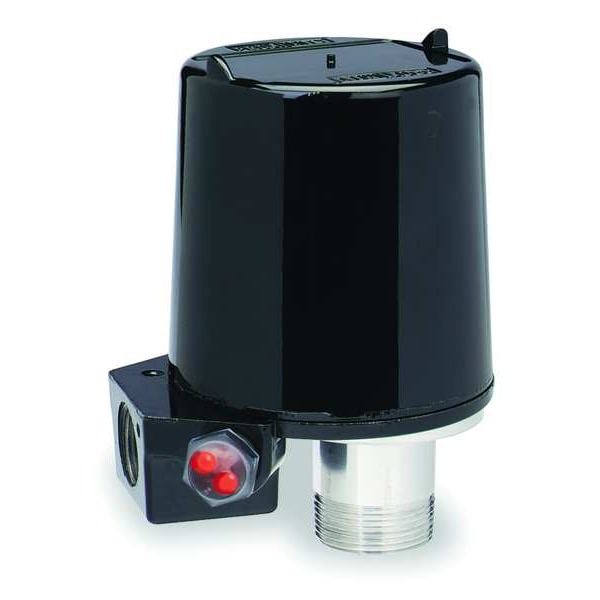

Level Switch, Paddle

SKU
Brand Proximity
Categories
Description Level Switch, Paddle, Power Required 120VAC, Enclosure NEMA 4X, Switch Type SPDT, Contact Rating 15A @ 120/230VAC, 5A @ 24VDC, Includes Instructions, Manufacturers Warranty Length 1 Year
graingerSKU: 2HMD1, mscSKU: , zoro_no: G1464206, mongo_id: 65bbe8729a749db822791846

Web Price

$652.49 / each

Qty

Product Details

Agency Approvals cUL, UL approved as an auxiliary device or as an auxiliary device for hazardous locations.

Conduit Connection 3/4 female NPT.

Contact Rating 15A @ 120/230VAC, 5A @ 24VDC

Country of Origin (subject to change) United States

Electrical Rating 15 A @ 120.

Enclosure NEMA 4X

Enclosure Rating Weatherproof (W, WH construction): NEMA 4X, Explosion-proof (E, EH construction): NEMA 4X and rated for Class I, Div. 1 & 2, Groups C & D, Div. 1 & 2, Groups E, F, & G.

Features Magnetic drive that isolates and completely seals the control head from the process and environment preventing material or dust from entering the control head.; Motor shuts-off when paddle stalls increasing motor life, preventing motor burnout, and decreasing power usage.; Slip clutch design enabled by the magnetic drive that prevents damage to motor and drive mechanism from sudden or excessive loading on the paddle.; Status indication light on weatherproof models.; Screw cover on the enclosure for easy access with no worries about losing bolts or screws.; Modular design to allow field installation of any paddle, flanges, shaft extensions, or shaft guards.; Flexible coupling available for protection of the paddle and drive from side loads, surges or impacts. Recommended for top mount applications with shaft extension and applications with large or heavy materials.

Includes Instructions

Manufacturers Warranty Length 1 yr

Output Type SPDT

Package Quantity 1

Power Consumption Weatherproof models: 5 watts, Explosion-proof models: 3 watts.

Power Required 120V AC

Pressure Limit 30 psig (2.07 bar) maximum for .5 micron or larger material.

Process Connection 1-1/4 male NPT. Optional flange.

Sensitivity 5 lb/cu ft to 200 lb/cu ft (Bulk Density)

Sensor Probe Length Order Separately

Sensor Process Connection 1-1/4 in NPT Male

Service Dry powder or bulk materials compatible with wetted materials.

Switch Type SPDT

Temperature Limits Standard Construction: Process: -40 to 300ÃÂ°F (-40 to 148.9ÃÂ°C), Ambient: -40 to 185ÃÂ°F (-40 to 85ÃÂ°C); High Temperature: Process: -40 to 500ÃÂ°F (-40 to 260ÃÂ°C), Ambient: -40 to 185ÃÂ°F (-40 to 85ÃÂ°C).

Type Paddle

Voltage Required 120 V AC

Wetted Materials Paddles: 316 SS. Exposed Shaft: 316 SS. Shaft Seal: PTFE. Mounting Boss: Aluminum. Flexible Coupling: 316 SS. Mounting Flanges: Carbon Steel or 316 SS. Shaft Extension and Shaft Guards: Galvanized Steel or 316 SS.

Wetted Parts Material PTFE, Stainless Steel
